Study on the removal of Cr(Ⅵ) by acid-modified distillers’ grains biochar

doi:10.19965/j.cnki.iwt.2024-0107

Abstract

Abstract:

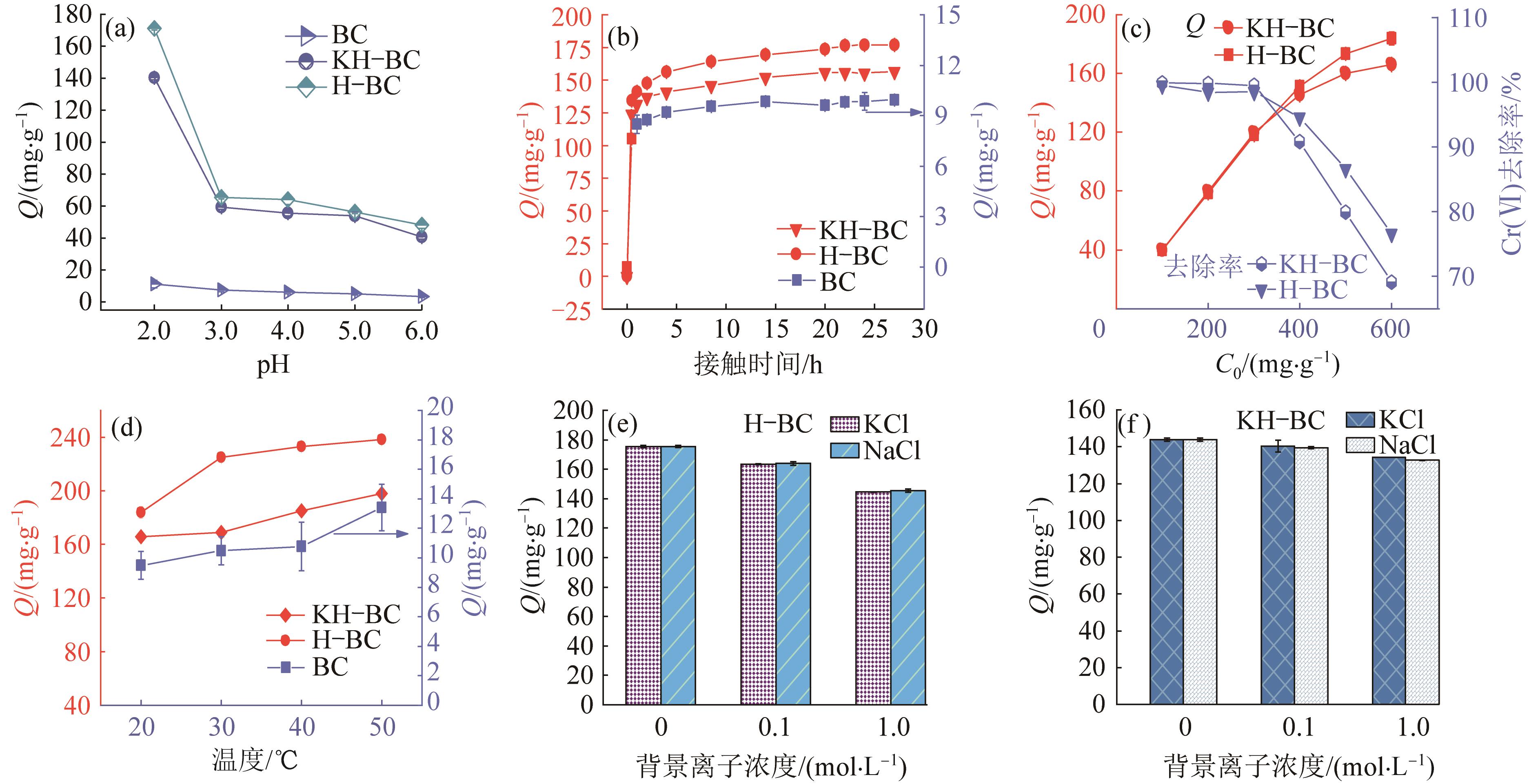

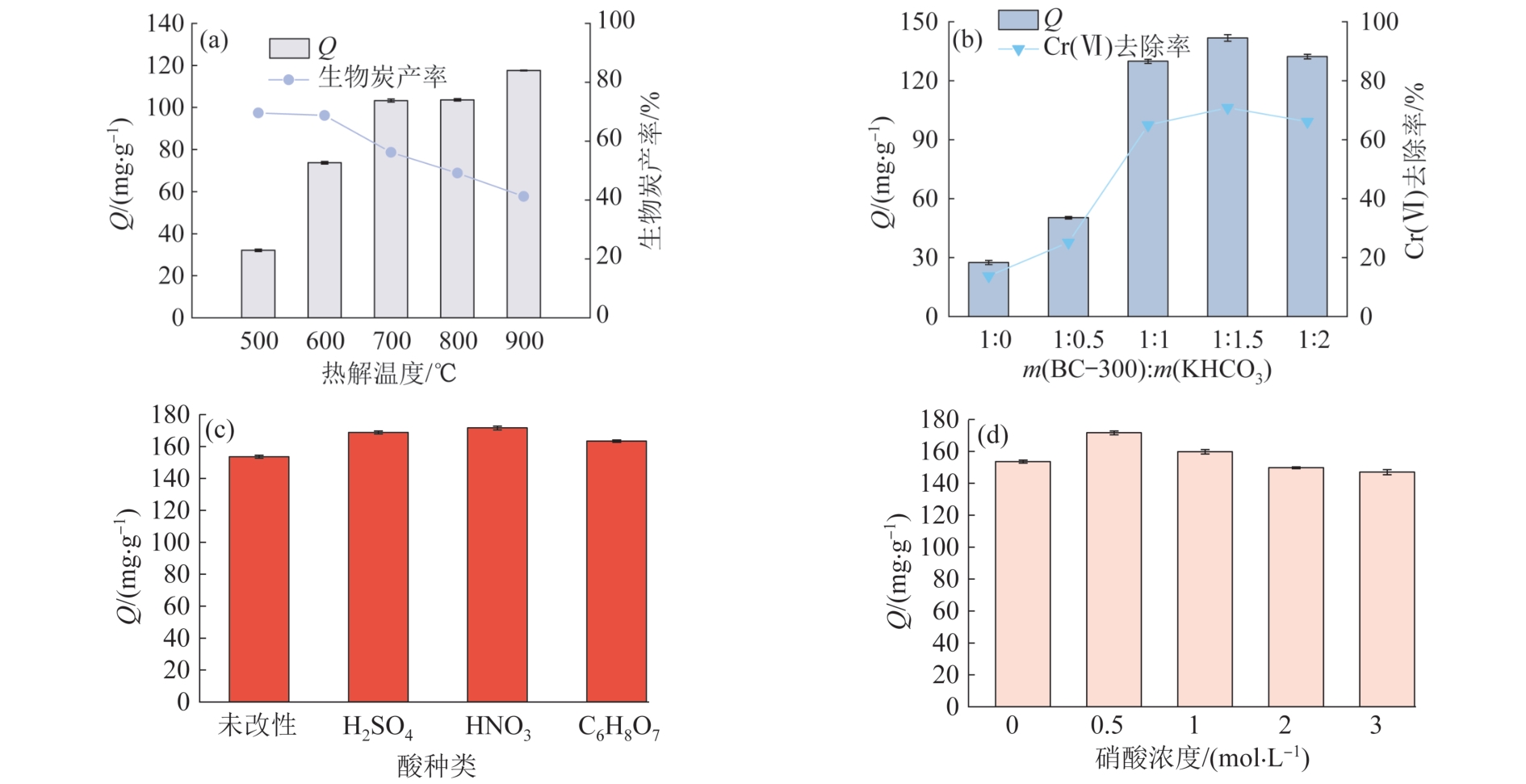

The acid modified biochar (H-BC) was prepared with distillers’ grains, which was activated by KHCO₃ and modified by dipping in acid solution. By optimizing the preparation parameters of H-BC (pyrolysis temperature, activator ratio, type and concentration of modified acid), it was found that H-BC prepared at a pyrolysis temperature of 700 ℃ and a mass ratio of distillers’ grains biochar to activator (KHCO₃) of 1∶1.5, and modified with 0.5 mol/L nitric acid had the best adsorption performance for Cr(Ⅵ). The effects of initial pH (2.0-6.0), initial Cr(Ⅵ) mass concentration (100-600 mg/L), adsorption time (0-27 h), adsorption temperature (20-60 ℃), background ions on the adsorption efficiency of H-BC for Cr(Ⅵ) were investigated. The results showed that the best adsorption performance was achieved at pH 2.0, with the adsorption capacity of 171.05 mg/g and the removal rate of 86%. When the initial mass concentration of Cr(Ⅵ) was 100-400 mg/L and the dosage of biochar was 2.5 g/L, the adsorption capacity of H-BC could reach 151.36 mg/g, with removal rate of 94.54%, demonstrating good adsorption performance within this concentration range. The adsorption process could be divided into rapid adsorption stage (0-1 h), slow adsorption stage (1-20 h), and equilibrium stage (20-27 h). The adsorption of Cr(Ⅵ) by H-BC was an endothermic process, and the adsorption amount increased with the increase of adsorption temperature. The concentration of background electrolytes(NaCl, KCl) had a significant impact on the adsorption of Cr(Ⅵ). The adsorption process was more in line with the Langmuir isotherm model and quasi second order kinetic model. The adsorption mechanism of H-BC for Cr(Ⅵ) involved electrostatic attraction and redox reactions.

Key words: distillers’ grains biochar, modified, adsorption, Cr(Ⅵ)

摘要：

利用白酒酒糟制备生物炭，采用KHCO₃活化后，再利用酸溶液浸渍进行改性，制备了酸改性酒糟生物炭（H-BC）。对H-BC的制备参数（热解温度、活化剂比例、改性酸种类及浓度）进行优化，得到热解温度为700 ℃，酒糟生物炭与活化剂（KHCO₃）为1∶1.5，采用0.5 mol/L硝酸改性制备的H-BC对Cr（Ⅵ）的吸附性能最优。探讨了初始pH（2.0~6.0）、初始Cr（Ⅵ）质量浓度（100~600 mg/L）、吸附时间（0~27 h）、吸附温度（20~60 ℃）、背景离子等因素对H-BC吸附Cr（Ⅵ）效果的影响，结果表明，在pH=2.0时吸附性能最好，其吸附量为171.05 mg/g，去除率为86%；生物炭投加量为2.5 g/L时，Cr（Ⅵ）初始质量浓度为100~400 mg/L范围内酒糟生物炭表现出较好的吸附性能，H-BC的吸附量为151.36 mg/g，去除率为94.54%；吸附过程可分为快速吸附阶段（0~1 h）、缓慢吸附阶段（1~20 h）、平衡阶段（20~27 h）；H-BC对Cr（Ⅵ）的吸附是一个吸热过程，吸附温度升高，吸附量随之增加；背景电解质（NaCl、KCl）浓度对Cr（Ⅵ）的吸附具有较大影响；吸附过程更符合Langmuir等温模型与准二级吸附动力学模型。H-BC对Cr（Ⅵ）的吸附机理涉及静电引力与氧化还原作用。

关键词: 酒糟生物炭, 改性, 吸附, Cr（Ⅵ）

CLC Number:

X703

Hengjun TANG, Biao QIU, Weiping SIMA, Jian TANG. Study on the removal of Cr(Ⅵ) by acid-modified distillers’ grains biochar[J]. Industrial Water Treatment, 2025, 45(3): 144-151.

唐恒军, 邱彪, 司马卫平, 唐建. 酸改性酒糟生物炭对Cr（Ⅵ）的去除性能研究[J]. 工业水处理, 2025, 45(3): 144-151.

/ / Recommend / Download Citations

URL: https://gyscl.magtechjournal.com/EN/10.19965/j.cnki.iwt.2024-0107

https://gyscl.magtechjournal.com/EN/Y2025/V45/I3/144

Figures/Tables 10

References 30

1	SUN Qian， ZHANG Lixin， WANG Changlong，et al. High nitrogen content bimolecular co-functionalized graphene nanoflakes for hypertoxic Cr（Ⅵ） removal：Insights into adsorption behavior and mechanisms［J］. Chemosphere，2023，340：139804. doi:10.1016/j.chemosphere.2023.139804
2	YANG Xiaoyang， WANG Baofeng， ZHANG Peng，et al. Adsorption and reduction of Cr（Ⅵ） by N，S co-doped porous carbon from sewage sludge and low-rank coal：Combining experiments and theoretical calculations［J］. Science of the Total Environment，2024，912：169265.
3	TANG Hengjun， QIU Biao， TANG Jian，et al. Enhanced removal of Cr（Ⅵ） of effectiveness and mechanism from wastewater using modified distiller grains-based biochar［J］. Desalination and Water Treatment，2023，295：166-176.
4	ZHANG Xin， XU Hongxing， XI Min，et al. Removal/adsorption mechanisms of Cr（Ⅵ） and natural organic matter by nanoscale zero-valent iron-loaded biochar in their coexisting system［J］. Journal of Environmental Chemical Engineering，2023，11（3）：109860.
5	MOHAMMED Y A Y A， ABDEL-MOHSEN A M， ZHANG Qijun，et al. Facile synthesis of ZIF-8 incorporated electrospun PAN/PEI nanofibrous composite membrane for efficient Cr（Ⅵ） adsorption from water［J］. Chemical Engineering Journal，2023，461：141972.
6	PAK T， GOMARI K E， BOSE S，et al. Biochar from brown algae：Production，activation，and characterisation［J］. Bioresource Technology Reports，2023，24：101688.
7	FENG Zhengyuan， CHEN Nan， LIU Tong，et al. KHCO₃ activated biochar supporting MgO for Pb（Ⅱ） and Cd（Ⅱ） adsorption from water：Experimental study and DFT calculation analysis［J］. Journal of Hazardous Materials，2022，426：128059.
8	ZHAO Meihua， BAI Xiang， FAN Xing，et al. Structure and adsorption performance of sludge-based porous carbon materials modified by KHCO₃ ［J］. Materials Letters，2023，350：134937.
9	SINGH J， VERMA M. Waste derived modified biochar as promising functional material for enhanced water remediation potential［J］. Environmental Research，2024，245：117999.
10	ZHAO Chen， LI Yuehua， HE Zhangxing，et al. KHCO₃ activated carbon microsphere as excellent electrocatalyst for VO²⁺/VO₂ ⁺ redox couple for vanadium redox flow battery［J］. Journal of Energy Chemistry，2019，29：103-110.
11	QIU Yue， ZHANG Qian， GAO Bin，et al. Removal mechanisms of Cr（Ⅵ） and Cr（Ⅲ） by biochar supported nanosized zero-valent iron：Synergy of adsorption，reduction and transformation［J］. Environmental Pollution，2020，265：115018.
12	IMRAN M， KHAN Z U H， IQBAL M M，et al. Effect of biochar modified with magnetite nanoparticles and HNO₃ for efficient removal of Cr（Ⅵ） from contaminated water：A batch and column scale study［J］. Environmental Pollution，2020，261：114231.
13	LI Yunchao， SHAO Jingai， WANG Xianhua，et al. Characterization of modified biochars derived from bamboo pyrolysis and their utilization for target component（furfural） adsorption［J］. Energy & Fuels，2014，28（8）：5119-5127.
14	YANG Zihao， AN Qiang， DENG Shuman，et al. Efficient activation of peroxydisulfate by modified red mud biochar derived from waste corn straw for levofloxacin degradation：Efficiencies and mechanisms［J］. Journal of Environmental Chemical Engineering，2023，11（6）：111609.
15	HE Yingnan， CHEN Jianbing， Jiapei LÜ，et al. Separable amino-functionalized biochar/alginate beads for efficient removal of Cr（Ⅵ） from original electroplating wastewater at room temperature［J］. Journal of Cleaner Production，2022，373：133790. doi:10.1016/j.jclepro.2022.133790
16	CHEN Yongjun， MA Rui， PU Xunchi，et al. The characterization of a novel magnetic biochar derived from sulfate-reducing sludge and its application for aqueous Cr（Ⅵ） removal through synergistic effects of adsorption and chemical reduction［J］. Chemosphere，2022，308（Pt 1）：136258.
17	CHEN Dong， DU Xiaohu， CHEN Kunyuan，et al. Efficient removal of aqueous Cr（Ⅵ） with ferrous sulfide/N-doped biochar composites：Facile，in situ preparation and Cr（Ⅵ） uptake performance and mechanism［J］. Science of the Total Environment，2022，837：155791.
18	HERATH A， LAYNE C A， PEREZ F，et al. KOH-activated high surface area Douglas Fir biochar for adsorbing aqueous Cr（Ⅵ），Pb（Ⅱ） and Cd（Ⅱ）［J］. Chemosphere，2021，269：128409.
19	KUANG Qunfeng， LIU Kun， WANG Qikun，et al. Three-dimensional hierarchical pore biochar prepared from soybean protein and its excellent Cr（Ⅵ） adsorption［J］. Separation and Purification Technology，2023，304：122295.
20	YU Jiangdong， JIANG Chunyan， GUAN Qingqing，et al. Enhanced removal of Cr（Ⅵ） from aqueous solution by supported ZnO nanoparticles on biochar derived from waste water hyacinth［J］. Chemosphere，2018，195：632-640.
21	ZHAO Nan， TAN Xiaofei， XIONG Juan，et al. Quantitative analysis on the redox conversion mechanism of Cr（Ⅵ） and As（Ⅲ） by iron carbide based biochar composites［J］. Chemical Engineering Journal，2022，446：137417.
22	BULUT E， ÖZACAR M， ŞENGIL İ A. Adsorption of malachite green onto bentonite：Equilibrium and kinetic studies and process design［J］. Microporous and Mesoporous Materials，2008，115（3）：234-246.
23	WANG Shenwan， ZHONG Shuang， ZHENG Xiaoyan，et al. Calcite modification of agricultural waste biochar highly improves the adsorption of Cu（Ⅱ） from aqueous solutions［J］. Journal of Environmental Chemical Engineering，2021，9（5）：106215.
24	YIN Guangcai， SONG Xiaowang， TAO Lin，et al. Novel Fe-Mn binary oxide-biochar as an adsorbent for removing Cd（Ⅱ） from aqueous solutions［J］. Chemical Engineering Journal，2020，389：124465.
25	DONG Fuxin， YAN Liu， ZHOU Xinhua，et al. Simultaneous adsorption of Cr（Ⅵ） and phenol by biochar-based iron oxide composites in water：Performance，kinetics and mechanism［J］. Journal of Hazardous Materials，2021，416：125930.
26	KHAN A A， NAQVI S R，ALI I，et al. Algal-derived biochar as an efficient adsorbent for removal of Cr（Ⅵ） in textile industry wastewater：Non-linear isotherm，kinetics and ANN studies［J］. Chemosphere，2023，316：137826.
27	LIU Na， ZHANG Yuting， XU Chao，et al. Removal mechanisms of aqueous Cr（Ⅵ） using apple wood biochar：A spectroscopic study［J］. Journal of Hazardous Materials，2020，384：121371.
28	ZHANG Hongda， LI Lijuan， LI Yanjun，et al. N and S co-doped pine needle biochar activated peroxydisulfate for antibiotic degradation［J］. Journal of Cleaner Production，2022，379：134619.
29	JIN Xingyun， TANG Xiaolong， LI Huan，et al. Visible-light driven efficient elimination of organic hazardous and Cr（Ⅵ） over BiOCl modified by Chinese baijiu distillers’ grain-based biochar［J］. Journal of Industrial and Engineering Chemistry，2022，107：472-482.
30	张雨婷. 生物质炭对电镀废水中六价铬的去除及机理研究［D］. 长春：吉林大学，2020.
	ZHANG Yuting. Study on removal efficiency and mechanism of hexavalent chromium from electroplating wastewater by biochar［D］. Changchun：Jilin University，2020.

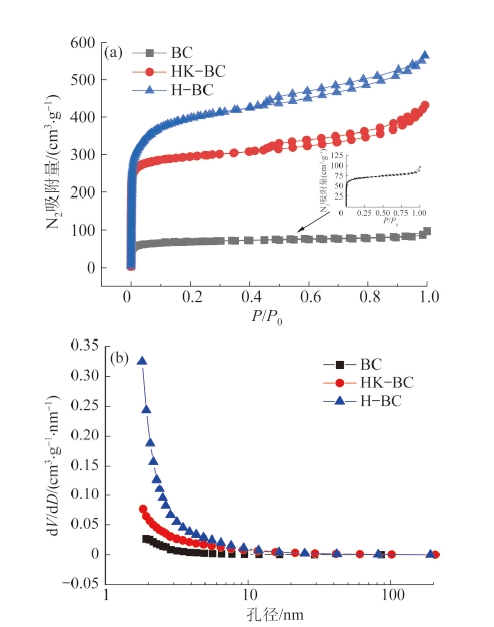

吸附剂	比表面积/（m²·g^-1）	孔容积/（cm³·g^-1）	平均孔径/nm
BC	217.23	0.151 4	2.79
KH-BC	919.42	0.668 9	2.91
H-BC	1 286.79	0.872 7	2.71

吸附剂	比表面积/（m²·g^-1）	孔容积/（cm³·g^-1）	平均孔径/nm
BC	217.23	0.151 4	2.79
KH-BC	919.42	0.668 9	2.91
H-BC	1 286.79	0.872 7	2.71

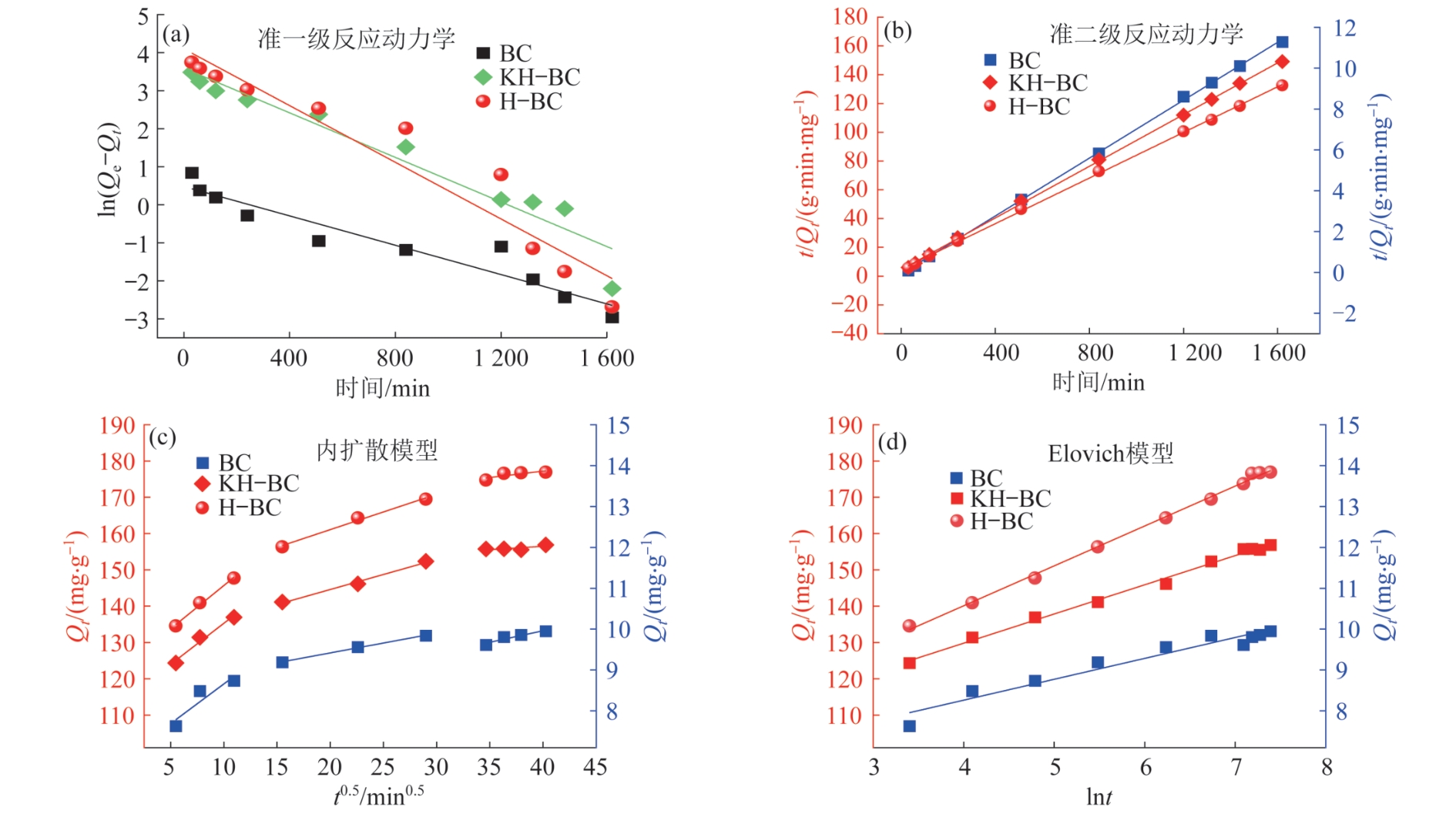

生物炭	准一级反应动力学模型			准二级反应动力学模型			内扩散模型									Elovich模型
生物炭	Q _e/（mg·g^-1）	k ₁	R ²	Q _e/（mg·g^-1）	k ₂	R ²	K _d，1	C ₁	R ²	K _d，2	C ₂	R ²	K _d，3	C ₃	R ²	α	β	R ²
H-BC	60.16	0.004	0.919 8	178.89	0.000 2	0.9996	2.385	121.85	0.986 4	0.975	141.60	0.982 5	0.352	163.14	0.505 1	6.86×10⁴	0.090	0.935 6
KH-BC	36.16	0.003	0.934 7	157.98	0.000 3	0.999 7	2.263	122.67	0.941 5	0.828	128.04	0.983 8	0.185	149.09	0.298 7	1.49×10⁶	0.124	0.993 7
BC	1.61	0.002	0.908 6	9.94	0.065	0.999 5	0.194	6.72	0.683 5	0.048	8.45	0.995 3	0.056	7.71	0.855 1	9.82×10⁴	1.957	0.935 6

生物炭	准一级反应动力学模型			准二级反应动力学模型			内扩散模型									Elovich模型
生物炭	Q _e/（mg·g^-1）	k ₁	R ²	Q _e/（mg·g^-1）	k ₂	R ²	K _d，1	C ₁	R ²	K _d，2	C ₂	R ²	K _d，3	C ₃	R ²	α	β	R ²
H-BC	60.16	0.004	0.919 8	178.89	0.000 2	0.9996	2.385	121.85	0.986 4	0.975	141.60	0.982 5	0.352	163.14	0.505 1	6.86×10⁴	0.090	0.935 6
KH-BC	36.16	0.003	0.934 7	157.98	0.000 3	0.999 7	2.263	122.67	0.941 5	0.828	128.04	0.983 8	0.185	149.09	0.298 7	1.49×10⁶	0.124	0.993 7
BC	1.61	0.002	0.908 6	9.94	0.065	0.999 5	0.194	6.72	0.683 5	0.048	8.45	0.995 3	0.056	7.71	0.855 1	9.82×10⁴	1.957	0.935 6

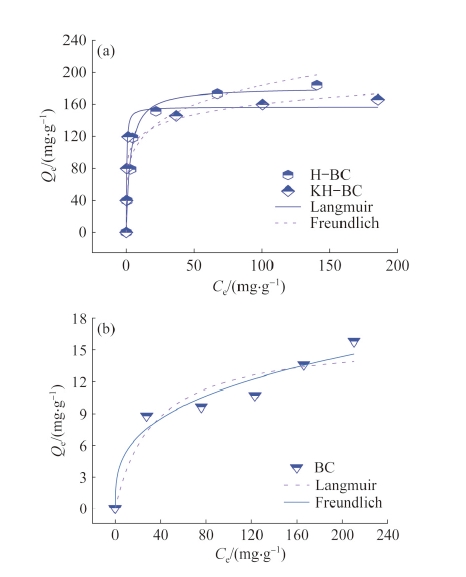

吸附剂	Langmuir			Freundlich
吸附剂	Q _m/（mg·g^-1）	K _L/（L·mg^-1）	R²	1/n	K _F/（mg^1-1/ ⁿ ·L^1/ ⁿ ·g^-1）	R²
H-BC	181.25	0.332	0.976 8	0.204	71.53	0.937 1
KH-BC	156.60	3.08	0.987 4	0.125	89.95	0.925 3
BC	16.10	0.029	0.899 2	0.325	2.57	0.949 0
