Optimized preparation of dithiocarboxylated polyethyleneimine-polyacrylamide and its Cu(Ⅱ) removal performance and mechanism

doi:10.19965/j.cnki.iwt.2023-1157

Abstract

Abstract:

Dithiocarboxylated polyethyleneimine-polyacrylamide〔DT(PEI-PAM)〕 was prepared by using polyacrylamide(PAM),sodium hydroxide(NaOH), sodium hypochlorite(NaClO), and carbon disulfide(CS₂) as raw materials. The Cu(Ⅱ) removal in water samples by DT(PEI-PAM) was investigated as the target, and the optimal preparation conditions of DT(PEI-PAM) were determined by orthogonal experiments. The removal performance of DT(PEI-PAM) for Cu(Ⅱ) was investigated by using flocculation experiments, and the preparation mechanism and the removal mechanism for Cu(Ⅱ) with DT(PEI-PAM) were investigated by characterization means. The results showed that the intermediate polyethylenimide(PEI) was prepared under the optimal conditions as 1% of PAM concentration, 1:1:2 of n(PAM):n(NaClO):n(NaOH), 30 ℃ of reaction temperature, 120 min of reaction time, and 6.5 of pH in reaction medium. The final product DT(PEI-PAM) was prepared under the optimal conditions as 1:2:3 of reactant mass concentration ratio for PEI:CS₂:NaOH, 25 ℃ of pre-reaction temperature, 40 min of pre-reaction time, 60 ℃ of main reaction temperature, and 120 min of main reaction time. The highest removal rate of Cu(Ⅱ) by DT(PEI-PAM) was 96.15% in water sample〔25 mg/L of Cu(Ⅱ) and pH 6.0〕. The infrared characterization and energy spectrum analysis showed that the dithiocarboxyl groups were successfully introduced in DT(PEI-PAM). The mechanism of DT(PEI-PAM) for Cu(Ⅱ) removal was mainly oxidation reduction and chelation precipitation, and the flocculation mechanism was mainly adsorption bridging and net sweep action.

Key words: polyacrylamide, dithiocarboxyl groups, copper-containing wastewater, flocculation

摘要：

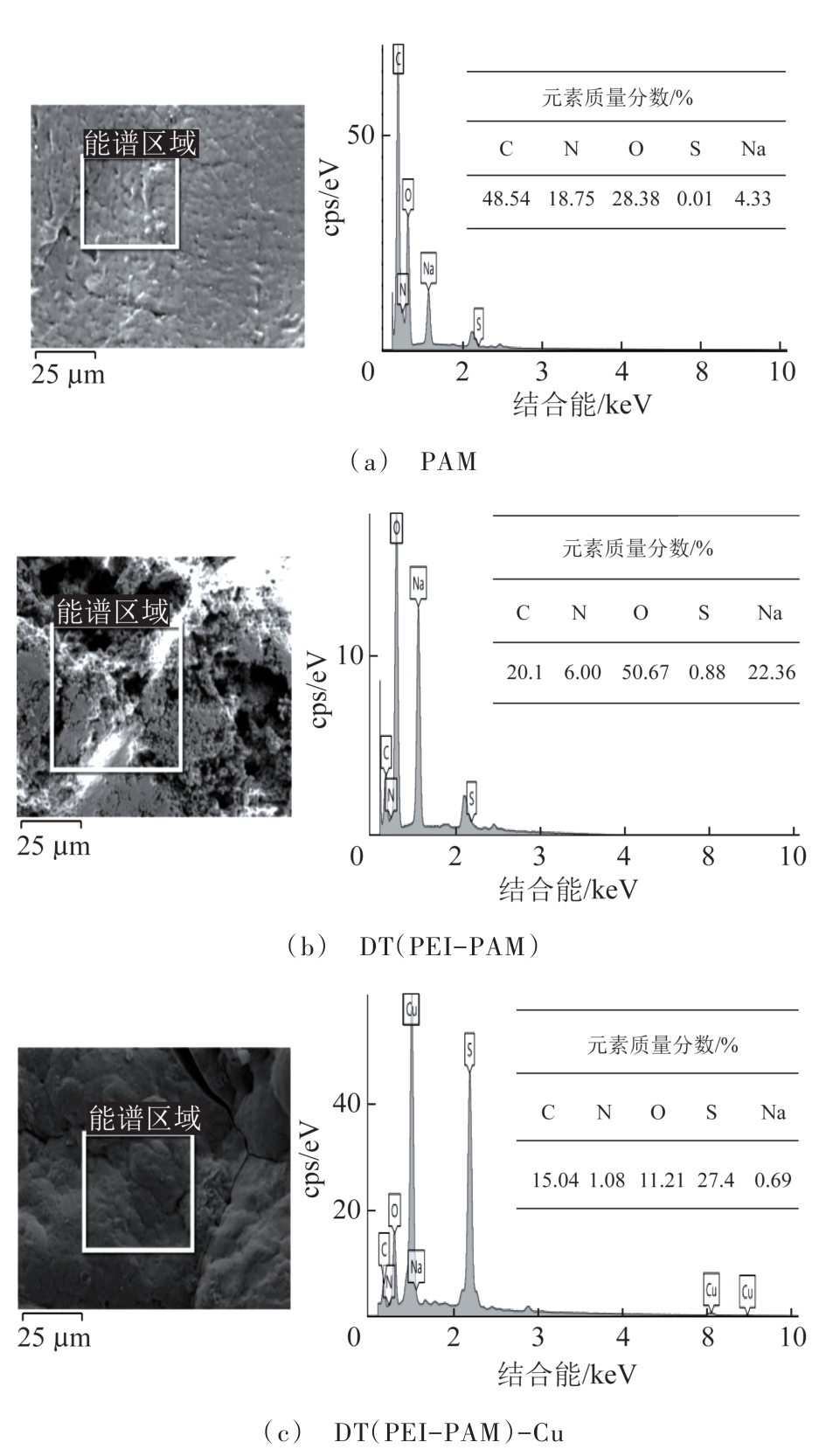

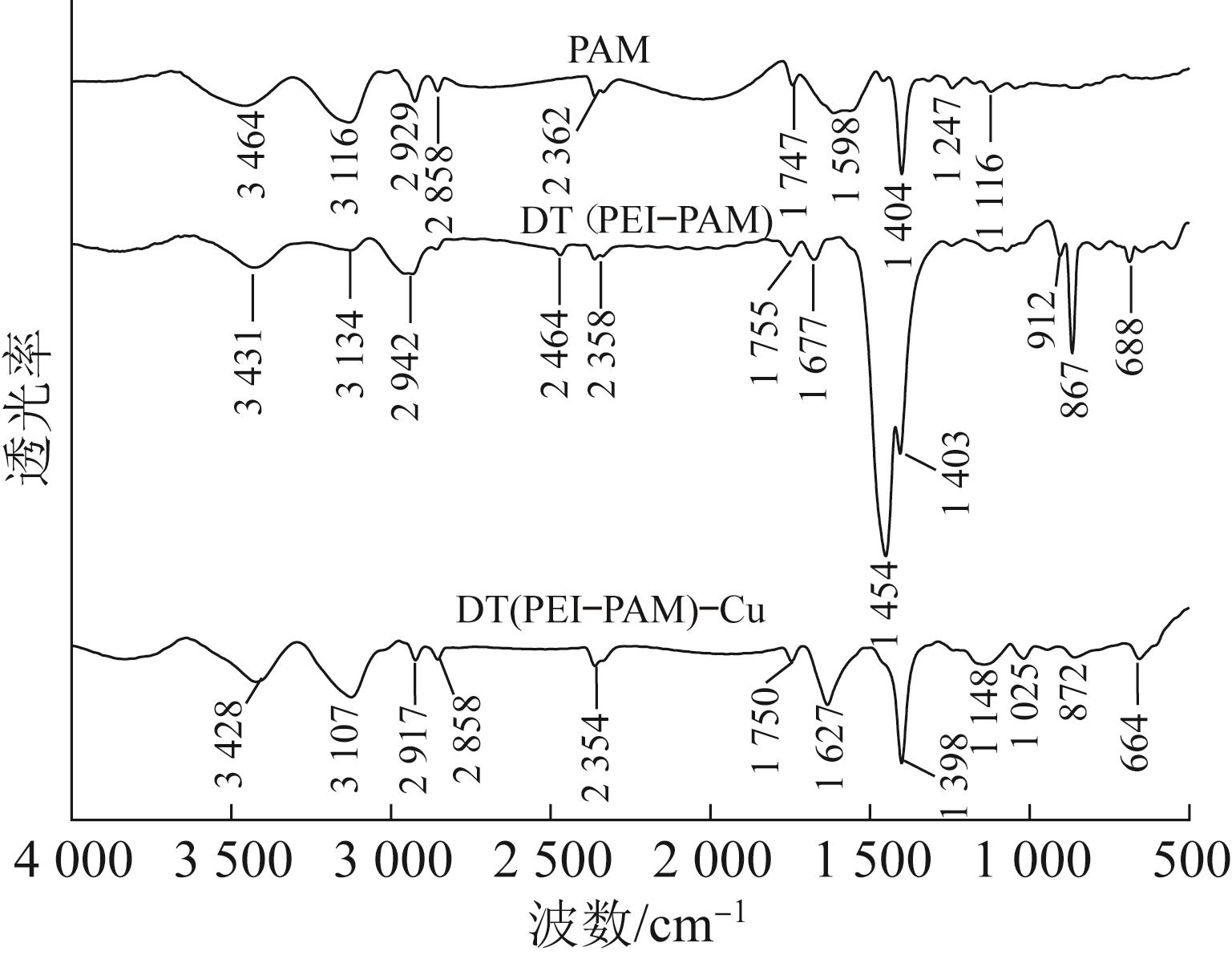

以聚丙烯酰胺（PAM）、氢氧化钠（NaOH）、次氯酸钠（NaClO）、二硫化碳（CS₂）为原料，制备了二硫代羧基化聚乙烯亚胺-聚丙烯酰胺〔DT（PEI-PAM）〕。以DT（PEI-PAM）对水样中Cu（Ⅱ）的去除率为考察目标，采用正交实验法确定出DT（PEI-PAM）的最佳制备条件；利用絮凝实验研究了DT（PEI-PAM）对Cu（Ⅱ）的去除性能；通过表征手段探究了DT（PEI-PAM）的制备机理及其除Cu（Ⅱ）机理。结果表明，以PAM质量分数为1%、n（PAM）∶n（NaClO）∶n（NaOH）为1∶1∶2、反应温度为30 ℃、反应时间为120 min、反应介质pH为6.5的最佳条件制备出中间产物聚乙烯亚胺（PEI）；再以PEI、CS₂、NaOH质量浓度比为1∶2∶3、预反应温度为25 ℃、预反应时间为40 min、主反应温度为60 ℃，主反应时间为120 min的最佳条件制备出最终产物DT（PEI-PAM）。DT（PEI-PAM）对含Cu（Ⅱ）水样〔Cu（Ⅱ）初始质量浓度25 mg/L、pH 6.0〕中Cu（Ⅱ）的最高去除率为96.15%。红外表征和能谱分析的结果表明，DT（PEI-PAM）制备过程中成功引入了二硫代羧基，DT（PEI-PAM）对Cu（Ⅱ）的去除机理主要为氧化还原作用和螯合沉淀作用，絮凝作用机理主要为吸附架桥作用，并辅以网捕卷扫作用。

关键词: 聚丙烯酰胺, 二硫代羧基, 含铜废水, 絮凝

CLC Number:

X703.1

Fangjuan SANG, Gang WANG, Xue WANG, Xiaomin YANG. Optimized preparation of dithiocarboxylated polyethyleneimine-polyacrylamide and its Cu(Ⅱ) removal performance and mechanism[J]. Industrial Water Treatment, 2024, 44(12): 67-76.

桑芳娟, 王刚, 王雪, 杨晓敏. 高分子絮凝剂DT（PEI-PAM）的优化制备及其除Cu（Ⅱ）性能与机理[J]. 工业水处理, 2024, 44(12): 67-76.

/ / Recommend / Download Citations

URL: https://gyscl.magtechjournal.com/EN/10.19965/j.cnki.iwt.2023-1157

https://gyscl.magtechjournal.com/EN/Y2024/V44/I12/67

Figures/Tables 16

References 24

1	姜盛基，王刚，严亚萍，等. 絮凝剂对水中污染物去除性能和机理的最新研究进展［J］. 应用化工，2021，50（5）：1348-1354.
	JIANG Shengji， WANG Gang， YAN Yaping，et al. Recent research progress in the removal performance and mechanism of flocculants for pollutants in water［J］. Applied Chemical Industry，2021，50（5）：1348-1354.
2	BEDRIKOVETSKY P， YOU Zhenjiang， BADALYAN A，et al. Analytical model for straining-dominant large-retention depth filtration［J］. Chemical Engineering Journal，2017，330：1148-1159. doi:10.1016/j.cej.2017.08.031
3	ZHANG Xianghui， WANG Junjie， WANG Ling，et al. Effects of kaolinite and its thermal transformation on oxidation of heavy oil［J］. Applied Clay Science，2022，223：106507. doi:10.1016/j.clay.2022.106507
4	王小雨，黄小霞，高磊. 重金属抗性菌及其去除CMP废水中Cu²⁺的研究进展［J］. 工业水处理，2023，43（3）：31-38.
	WANG Xiaoyu， HUANG Xiaoxia， GAO Lei. Research progress on heavy metal resistant bacteria and their removal of Cu²⁺ from CMP wastewater［J］. Industrial Water Treatment，2023，43（3）：31-38.
5	BILAL M， SHAH J A， ASHFAQ T，et al. Waste biomass adsorbents for copper removal from industrial wastewater：A review［J］. Journal of Hazardous Materials，2013，263 Pt 2：322-333. doi:10.1016/j.jhazmat.2013.07.071
6	BELIBAGLI P， ISIK Z， BOURAS H D，et al. A combined process of chemical precipitation and aerobic membrane bioreactor for treatment of citric acid wastewater［J］. Journal of Environmental Management，2023，342：118259. doi:10.1016/j.jenvman.2023.118259
7	MOMINA， AHMAD K. Feasibility of the adsorption as a process for its large scale adoption across industries for the treatment of wastewater：Research gaps and economic assessment［J］. Journal of Cleaner Production，2023，388：136014. doi:10.1016/j.jclepro.2023.136014
8	XIANG Hongrui， MIN Xiaobo， TANG Chongjian，et al. Recent advances in membrane filtration for heavy metal removal from wastewater：A mini review［J］. Journal of Water Process Engineering，2022，49：103023. doi:10.1016/j.jwpe.2022.103023
9	ATES N， UZAL N. Removal of heavy metals from aluminum anodic oxidation wastewaters by membrane filtration［J］. Environmental Science and Pollution Research，2018，25（22）：22259-22272. doi:10.1007/s11356-018-2345-z
10	黄万抚，胡昌顺，曹明帅，等. 难处理含铜废水处理技术研究［J］. 应用化工，2018，47（10）：2248-2253.
	HUANG Wanfu， HU Changshun， CAO Mingshuai，et al. Study on treatment technology of stubborn copper containing wastewater［J］. Applied Chemical Industry，2018，47（10）：2248-2253.
11	舒颖，吴彩斌，胡雪峰，等. 粉煤灰活性炭处理含铜废水的性能［J］. 环境化学，2013，32（5）：819-826.
	SHU Ying， WU Caibin， HU Xuefeng，et al. Treatment Cu-containing wastewater by using activated carbon made from coal ash［J］. Environmental Chemistry，2013，32（5）：819-826.
12	KARTHIKEYAN P， VIGNESHWARAN S， PREETHI J，et al. Preparation of novel cobalt ferrite coated-porous carbon composite by simple chemical co-precipitation method and their mechanistic performance［J］. Diamond and Related Materials，2020，108：107922. doi:10.1016/j.diamond.2020.107922
13	王丽苑，李彦锋. 重金属微污染水体的处理技术及应用研究进展［J］. 环境工程，2009，27（S1）：96-99.
	WANG Liyuan， LI Yanfeng. Technology of treating slightly-polluted water by heavy metals and progress in its research［J］. Environmental Engineering，2009，27（S1）：96-99.
14	ZYDNEY A L. Stagnant film model for concentration polarization in membrane systems［J］. Journal of Membrane Science，1997，130（1/2）：275-281. doi:10.1016/s0376-7388(97)00006-9
15	DIALYNAS E， DIAMADOPOULOS E. Integration of a membrane bioreactor coupled with reverse osmosis for advanced treatment of municipal wastewater［J］. Desalination，2009，238（1）：302-311. doi:10.1016/j.desal.2008.01.046
16	顾平，武耘羽，刘阳，等. 废水中除铜研究的最新进展［J］. 工业水处理，2017，37（5）：1-5.
	GU Ping， WU Yunyu， LIU Yang，et al. Latest research progress in the removal of copper from waste water［J］. Industrial Water Treatment，2017，37（5）：1-5.
17	王露露，王刚，周雅琦，等. 基于响应面法优化重金属絮凝剂DTSPAM对水中Cu²⁺的去除条件［J］. 应用化工，2022，51（6）：1586-1591.
	WANG Lulu， WANG Gang， ZHOU Yaqi，et al. Optimization of Cu²⁺removal condition from water by heavy metal flocculant DTSPAM based on response surface methodology［J］. Applied Chemical Industry，2022，51（6）：1586-1591.
18	王刚，李嘉，袁海飞，等. 聚乙烯亚胺基黄原酸钠与铁盐共同处理低浊水［J］. 中国环境科学，2019，39（6）：2402-2410. doi:10.3969/j.issn.1000-6923.2019.06.021
	WANG Gang， LI Jia， YUAN Haifei，et al. Treatment of low-turbidity water by polyethyleneimine-sodium xanthogenate and ferrous/ferric salts［J］. China Environmental Science，2019，39（6）：2402-2410. doi:10.3969/j.issn.1000-6923.2019.06.021
19	杜凤龄，徐敏，王刚，等. 絮凝剂处理重金属废水的研究进展［J］. 工业水处理，2014，34（12）：12-16. doi:10.11894/1005-829x.2014.34(12).012
	DU Fengling， XU Min， WANG Gang，et al. Research progress in flocculants applied to the treatment of wastewater containing heavy metals［J］. Industrial Water Treatment，2014，34（12）：12-16. doi:10.11894/1005-829x.2014.34(12).012
20	王志科，王刚，徐敏，等. 响应面法优化制备二硫代羧基化胺甲基聚丙烯酰胺［J］. 中国环境科学，2017，37（6）：2114-2121. doi:10.3969/j.issn.1000-6923.2017.06.016
	WANG Zhike， WANG Gang， XU Min，et al. Preparation of dithiocarboxyl amino-methylated polyacrylamide optimized by response surface methodology［J］. China Environmental Science，2017，37（6）：2114-2121. doi:10.3969/j.issn.1000-6923.2017.06.016
21	马斌，杨晓明. 黑臭水体中氧化还原电位（ORP）的测量及影响因素［J］. 仪器仪表用户，2021，28（9）：110-112.
	MA Bin， YANG Xiaoming. Measurement of redox potential（ORP） in black and odorous water and its influencing factors［J］. Instrumentation，2021，28（9）：110-112.
22	卢涌泉，邓振华. 实用红外光谱解析［M］. 北京：电子工业出版社，1989：50-100.
23	廖强强，王中瑗，李义久，等. 三乙烯四胺基双（二硫代甲酸钠）及其重金属配合物的光谱研究［J］. 光谱学与光谱分析，2009，29（3）：829-832.
	LIAO Qiangqiang， WANG Zhongyuan， LI Yijiu，et al. Spectra study of a sodion triethylenetetramine-bisDithiocarbamate and its complexes with heavy metal ions［J］. Spectroscopy and Spectral Analysis，2009，29（3）：829-832.
24	黄晋培，黄丹，王法军，等. 霍夫曼重排反应过程的研究进展［J］. 化工学报，72（1）：158-166.
	HUANG Jinpei， HUANG Dan， WANG Fajun，et al. Research progress of Hofmann rearrangement reaction［J］. CIESC Journal，72（1）：158-166.

实验号	PAM 质量分数/%	反应物比例〔n（PAM）∶ n（NaClO）∶n（NaOH）〕	T ₀/℃	t ₀/min	反应介质 pH	Cu（Ⅱ）去除率/%
实验号	PAM 质量分数/%	反应物比例〔n（PAM）∶ n（NaClO）∶n（NaOH）〕	T ₀/℃	t ₀/min	反应介质 pH	135 mg/L	150 mg/L	165 mg/L
1	1	1∶1∶2	30	30	6.0	84.30	89.91	93.85
2	1	1∶1.5∶2	40	60	6.5	74.47	83.88	90.85
3	1	1∶2∶2	50	90	7.0	82.65	88.58	90.54
4	1	1∶1.5∶2.5	60	120	7.5	77.91	83.70	90.35
5	2	1∶1∶2	40	90	7.5	73.43	82.74	86.83
6	2	1∶1.5∶2	30	120	7.0	72.68	74.16	87.65
7	2	1∶2∶2	60	30	6.5	76.59	87.35	86.26
8	2	1∶1.5∶2.5	50	60	6.0	69.38	77.94	74.97
9	3	1∶1∶2	50	120	6.5	72.70	79.86	88.98
10	3	1∶1.5∶2	60	90	6.0	65.05	71.70	81.38
11	3	1∶2∶2	30	60	7.5	71.20	75.37	81.60
12	3	1∶1.5∶2.5	40	30	7.0	72.65	82.95	83.87
13	4	1∶1∶2	60	60	7.0	68.31	74.32	84.62
14	4	1∶1.5∶2	50	30	7.5	76.44	81.43	81.38
15	4	1∶2∶2	40	120	6.0	72.05	79.78	83.30
16	4	1∶1.5∶2.5	30	90	6.5	81.50	86.41	87.92

实验号	PAM 质量分数/%	反应物比例〔n（PAM）∶ n（NaClO）∶n（NaOH）〕	T ₀/℃	t ₀/min	反应介质 pH	Cu（Ⅱ）去除率/%
实验号	PAM 质量分数/%	反应物比例〔n（PAM）∶ n（NaClO）∶n（NaOH）〕	T ₀/℃	t ₀/min	反应介质 pH	135 mg/L	150 mg/L	165 mg/L
1	1	1∶1∶2	30	30	6.0	84.30	89.91	93.85
2	1	1∶1.5∶2	40	60	6.5	74.47	83.88	90.85
3	1	1∶2∶2	50	90	7.0	82.65	88.58	90.54
4	1	1∶1.5∶2.5	60	120	7.5	77.91	83.70	90.35
5	2	1∶1∶2	40	90	7.5	73.43	82.74	86.83
6	2	1∶1.5∶2	30	120	7.0	72.68	74.16	87.65
7	2	1∶2∶2	60	30	6.5	76.59	87.35	86.26
8	2	1∶1.5∶2.5	50	60	6.0	69.38	77.94	74.97
9	3	1∶1∶2	50	120	6.5	72.70	79.86	88.98
10	3	1∶1.5∶2	60	90	6.0	65.05	71.70	81.38
11	3	1∶2∶2	30	60	7.5	71.20	75.37	81.60
12	3	1∶1.5∶2.5	40	30	7.0	72.65	82.95	83.87
13	4	1∶1∶2	60	60	7.0	68.31	74.32	84.62
14	4	1∶1.5∶2	50	30	7.5	76.44	81.43	81.38
15	4	1∶2∶2	40	120	6.0	72.05	79.78	83.30
16	4	1∶1.5∶2.5	30	90	6.5	81.50	86.41	87.92

DT（PAM-PEI）投加量/（mg·L^-1）		A：PAM质量分数	B：反应物比例	C：T ₀	D：t ₀	E：反应介质pH
135	K ₁	79.83	74.69	77.42	77.49	72.69
	K ₂	73.02	72.16	73.15	70.84	76.32
	K ₃	70.40	75.63	75.29	75.66	74.08
	K ₄	74.58	75.36	71.96	73.84	74.75
	R	9.43	3.47	5.46	6.65	3.62
150	K ₁	86.52	81.71	81.46	85.41	79.83
	K ₂	80.55	77.79	82.34	77.88	84.37
	K ₃	77.47	82.77	81.95	82.36	80.00
	K ₄	80.48	82.75	79.27	79.37	80.81
	R	9.05	4.98	3.07	7.53	4.54
165	K ₁	91.40	88.57	87.75	86.34	83.37
	K ₂	83.93	85.31	86.21	83.01	88.50
	K ₃	83.96	85.42	83.97	86.67	86.67
	K ₄	84.30	84.28	85.65	87.57	85.04
	R	7.47	4.29	3.79	4.56	5.13

DT（PAM-PEI）投加量/（mg·L^-1）		A：PAM质量分数	B：反应物比例	C：T ₀	D：t ₀	E：反应介质pH
135	K ₁	79.83	74.69	77.42	77.49	72.69
	K ₂	73.02	72.16	73.15	70.84	76.32
	K ₃	70.40	75.63	75.29	75.66	74.08
	K ₄	74.58	75.36	71.96	73.84	74.75
	R	9.43	3.47	5.46	6.65	3.62
150	K ₁	86.52	81.71	81.46	85.41	79.83
	K ₂	80.55	77.79	82.34	77.88	84.37
	K ₃	77.47	82.77	81.95	82.36	80.00
	K ₄	80.48	82.75	79.27	79.37	80.81
	R	9.05	4.98	3.07	7.53	4.54
165	K ₁	91.40	88.57	87.75	86.34	83.37
	K ₂	83.93	85.31	86.21	83.01	88.50
	K ₃	83.96	85.42	83.97	86.67	86.67
	K ₄	84.30	84.28	85.65	87.57	85.04
	R	7.47	4.29	3.79	4.56	5.13

实验号	n（PEI）∶n（CS₂）∶n（NaOH）	T ₁/℃	t ₁/min	T ₂/℃	t ₂/min	Cu（Ⅱ）去除率/%
实验号	n（PEI）∶n（CS₂）∶n（NaOH）	T ₁/℃	t ₁/min	T ₂/℃	t ₂/min	135 mg/L	150 mg/L	165 mg/L
1	1∶2∶3	20	10	45	30	53.59	54.65	60.89
2	1∶2∶3	25	20	50	60	79.32	83.67	88.47
3	1∶2∶3	30	30	55	90	92.24	95.36	11.56
4	1∶2∶3	35	40	60	120	95.98	88.74	3.01
5	1∶2∶2	20	20	55	120	59.96	65.38	74.75
6	1∶2∶2	25	10	60	90	68.05	70.48	82.24
7	1∶2∶2	30	40	45	60	55.50	62.55	66.34
8	1∶2∶2	35	30	50	30	52.15	57.27	68.41
9	1∶2∶1	20	30	60	60	26.83	32.49	33.60
10	1∶2∶1	25	40	55	30	29.92	37.61	41.17
11	1∶2∶1	30	10	50	120	31.01	30.18	35.85
12	1∶2∶1	35	20	45	90	25.53	34.08	37.33
13	1∶3∶2.5	20	40	50	90	72.77	80.46	92.34
14	1∶3∶2.5	25	30	45	120	77.48	86.51	92.49
15	1∶3∶2.5	30	20	60	30	72.54	80.68	91.43
16	1∶3∶2.5	35	10	55	60	77.90	83.80	85.84
