Treatment of bisphenol A wastewater by laccase immobilized on hollow zeolite microspheres

doi:10.19965/j.cnki.iwt.2022-0923

Abstract

Abstract:

Laccase（LAC） can effectively catalyze the oxidation of a variety of organic pollutants in wastewater，but its free state is unstable and difficult to recycle and reuse. A hierarchical hollow zeolite microsphere（HZM） composed of interleaved MWW nanosheets was synthesized and used for the immobilization of LAC. The results showed that LAC could be immobilized to amino functionalized HZM by glutaraldehyde（GA） cross-linking method，with a loading content up to 198.6 mg/g and an enzyme activity recovery about 52.4%. Compared with the free LAC，the sensitivity of immobilized LAC to acidity and temperature decreased，and the storage and operation stability significantly improved. The immobilized enzyme could retain more than 50% of the initial activity after 8 cycles. The catalytic oxidation effect of immobilized enzyme on bisphenol A in wastewater was satisfactory.

Key words: zeolite, laccase, enzyme immobilization, water treatment, catalytic oxidation

摘要：

漆酶（LAC）能够有效催化氧化废水中多种难降解的有机污染物，但其游离态不够稳定，且难以回收再利用。采用动态晶化法合成了一种由MWW结构纳米片交错共生而成的分级孔空心分子筛微球（HZM），并将其用于LAC的固定化。结果表明，通过戊二醛（GA）交联法可将LAC固定于氨基功能化的HZM上，固载量可达198.6 mg/g，酶活性回收率约为52.4%；与游离态LAC相比，固定化LAC对酸度和温度敏感性降低，储藏和操作稳定性有明显提升；固定化酶循环使用8次后，仍可保留初始活性的50%以上；固定化酶对双酚A废水的催化氧化效果令人满意。

关键词: 分子筛, 漆酶, 酶固定化, 水处理, 催化氧化

CLC Number:

TQ09
X703

Zhihao HAO, Hongmei YANG, Huaxin ZHANG. Treatment of bisphenol A wastewater by laccase immobilized on hollow zeolite microspheres[J]. Industrial Water Treatment, 2023, 43(8): 137-142.

郝志豪, 杨红梅, 张华新. 空心分子筛微球固定化漆酶处理双酚A废水[J]. 工业水处理, 2023, 43(8): 137-142.

/ / Recommend / Download Citations

URL: https://gyscl.magtechjournal.com/EN/10.19965/j.cnki.iwt.2022-0923

https://gyscl.magtechjournal.com/EN/Y2023/V43/I8/137

Figures/Tables 7

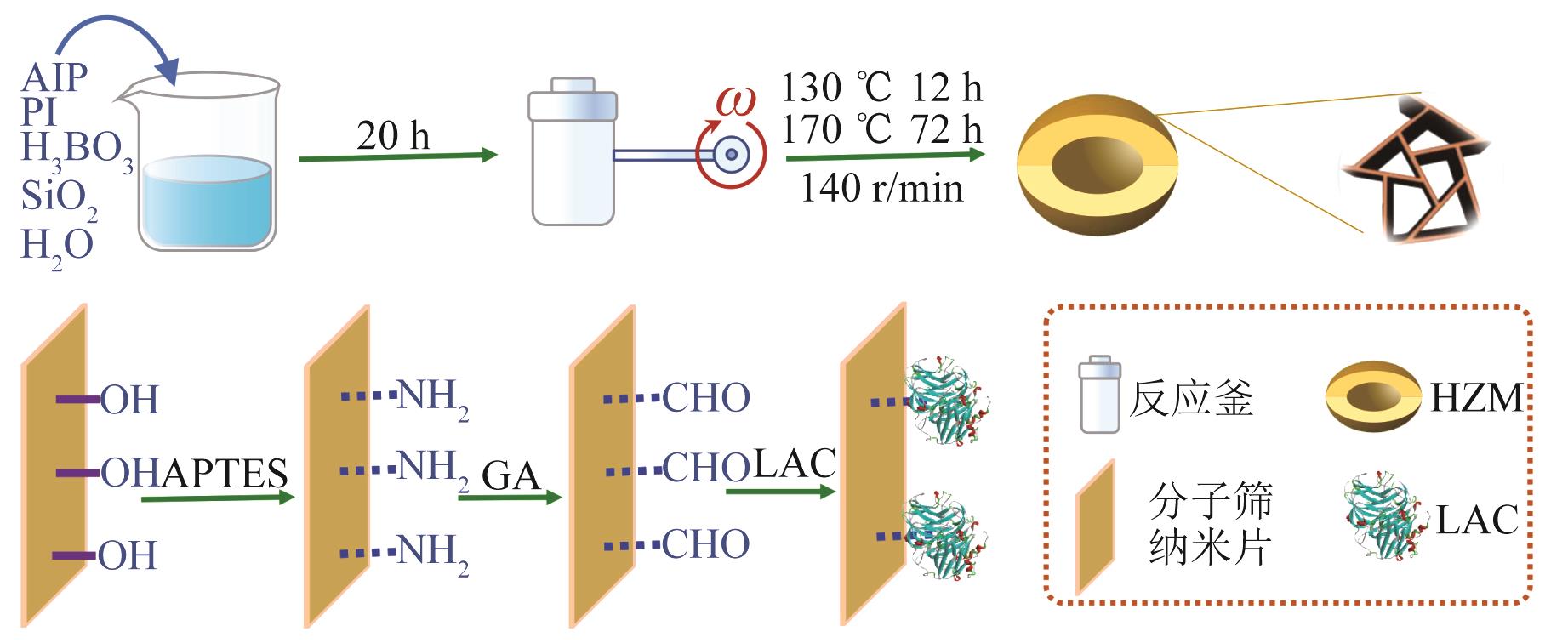

Fig. 1 Preparation of LAC@HZM

Fig. 2 SEM images of HZM-NH₂ and LAC@HZM

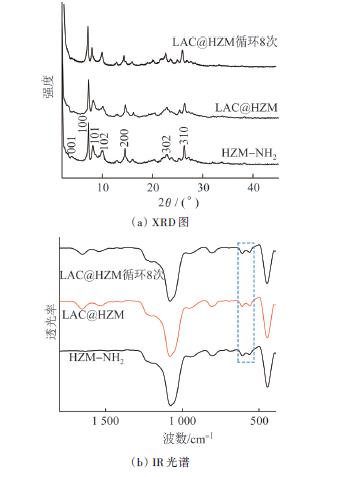

Fig. 3 XRD and IR spectra of HZM-NH₂ and LAC@HZM

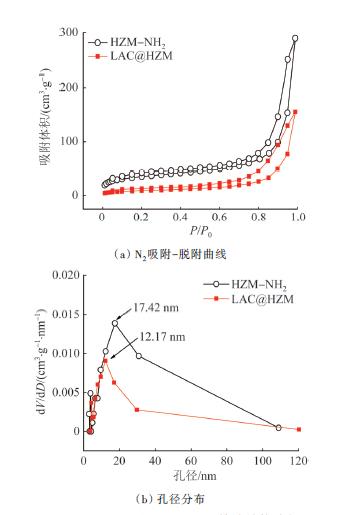

Fig. 4 Pore structure analyses of HZM-NH₂ and LAC@HZM

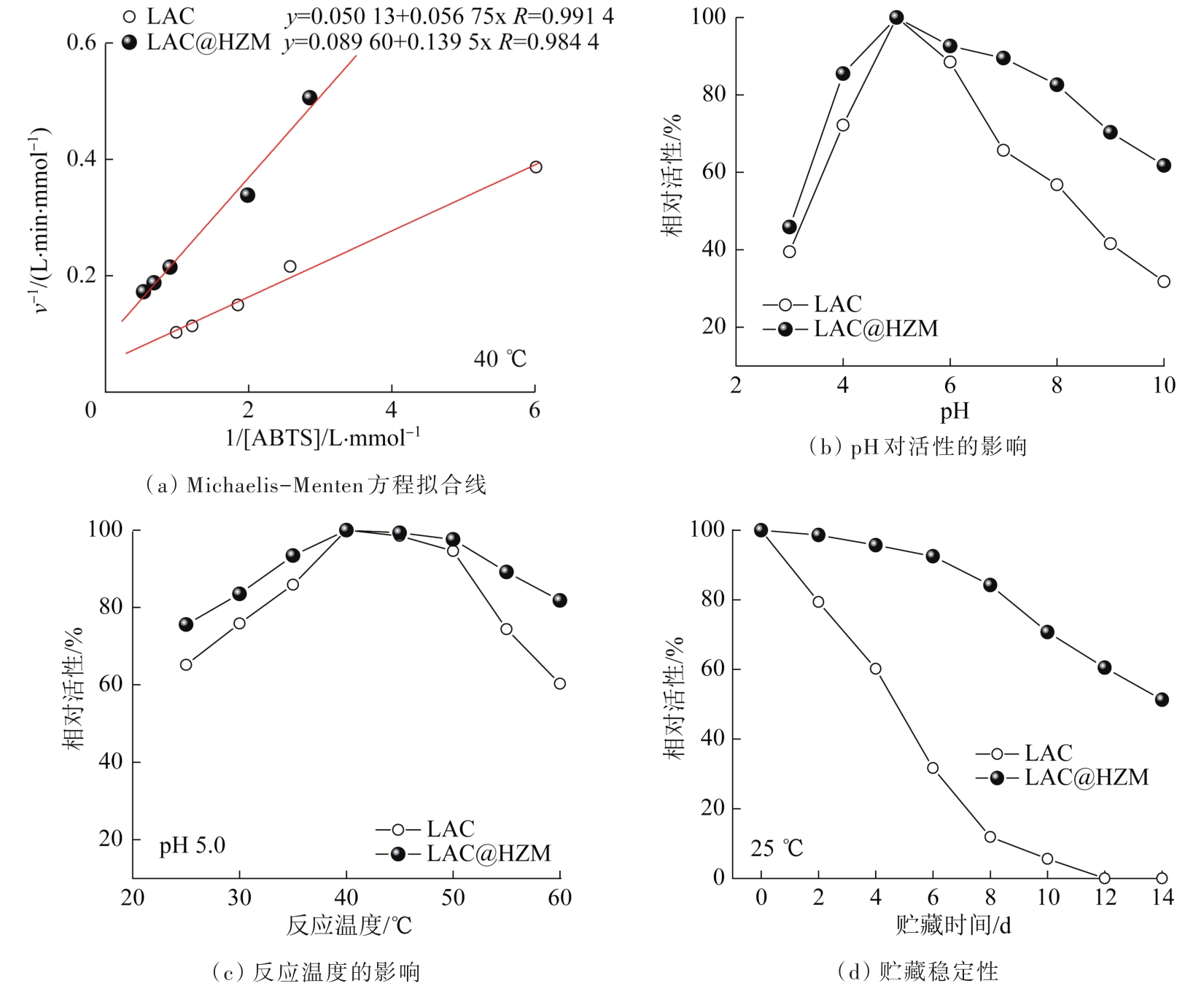

Fig. 5 Property comparison of LAC and LAC@HZM

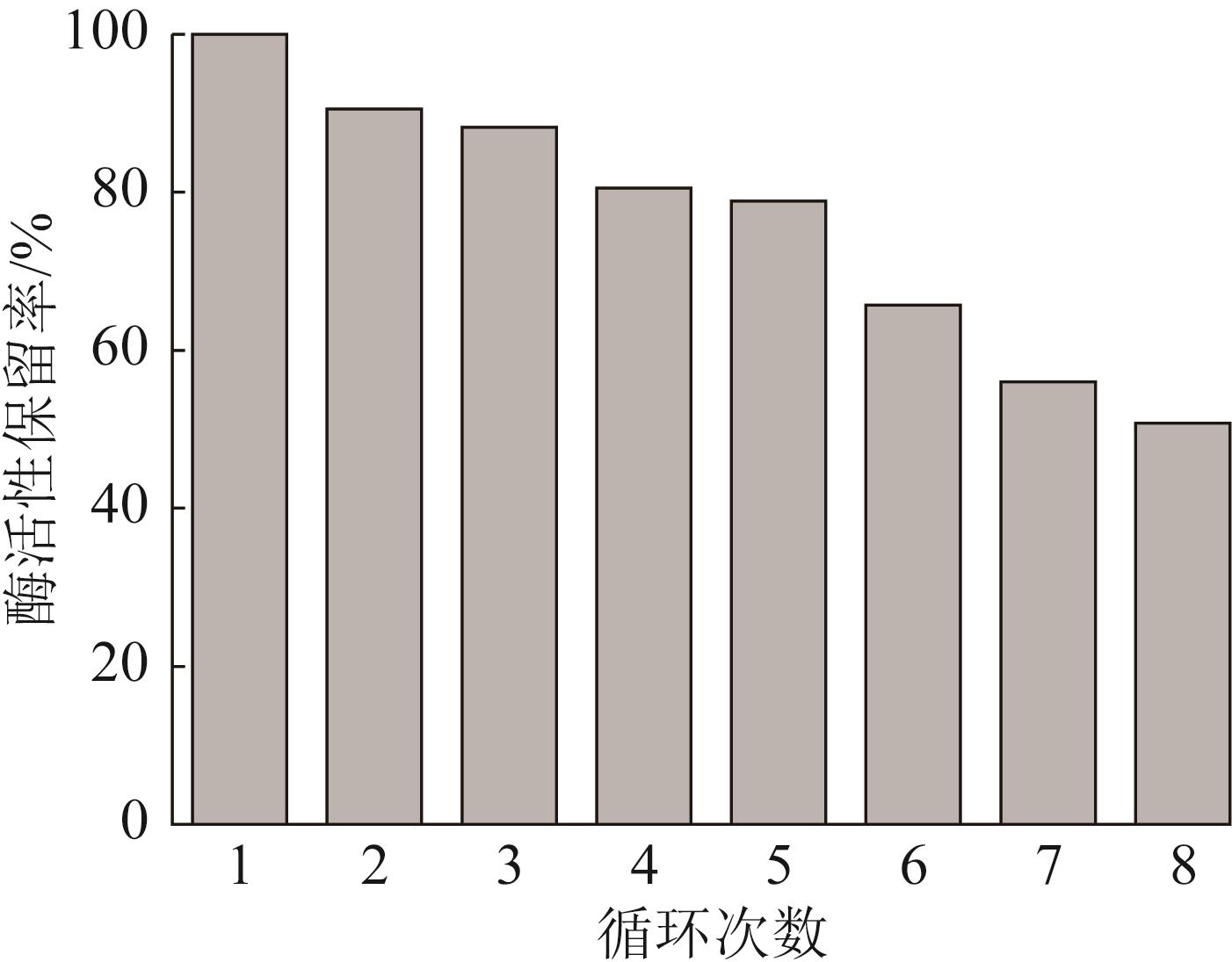

Fig. 6 Reusability of LAC@HZM

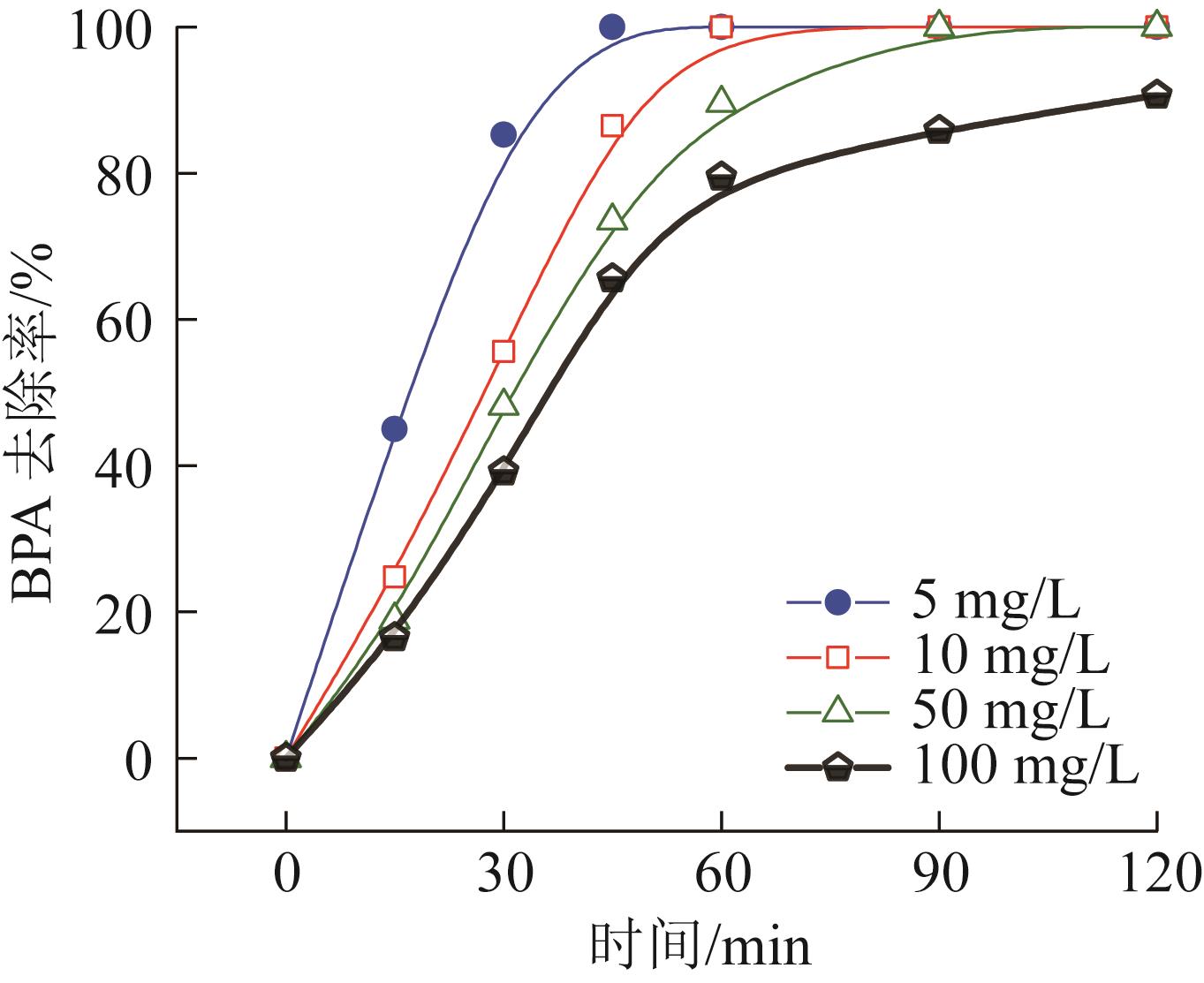

Fig. 7 The catalytic degradation of BPA by LAC@HZM

References 16

1	YANG Hongmei， ZHANG Lili， SHI Hong，et al. Hierarchical tetrazolium-based hyper-crosslinked polymer for rapid nitrophenol removal from wastewater［J］. Microporous and Mesoporous Materials，2022，337：111936. doi:10.1016/j.micromeso.2022.111936
2	张丽丽，南海，张华新. 设计苯并咪唑基多孔聚合物快速吸附金霉素［J］. 工业水处理，2023，43（7）：1-11.
	ZHANG Lili， Hai NAN， ZHANG Xinhua. Design of benzimidazole-based porous polymers for rapid adsorption of chlortetracycline［J］. Industrial Water Treatment，2023，43（7）：1-11.
3	TAGHIZADEH T， TALEBIAN-KIAKALAIEH A， JAHANDAR H，et al. Biodegradation of bisphenol A by the immobilized laccase on some synthesized and modified forms of zeolite Y［J］. Journal of Hazardous Materials，2020，386：121950. doi:10.1016/j.jhazmat.2019.121950
4	DABEK L. Application of sorption and advanced oxidation processes for removal of phenols from aqueous solutions［J］. Rocznik Ochrona Srodowiska，2015，17（1）：616-45.
5	CORDOVA VILLEGAS L G， MASHHADI N， CHEN Miao，et al. A short review of techniques for phenol removal from wastewater［J］. Current Pollution Reports，2016，2（3）：157-167. doi:10.1007/s40726-016-0035-3
6	LI Hao， MENG Fanping， DUAN Weiyan，et al. Biodegradation of phenol in saline or hypersaline environments by bacteria：A review［J］. Ecotoxicology and Environmental Safety，2019，184：109658. doi:10.1016/j.ecoenv.2019.109658
7	LIU Dongmei， CHEN Juan， SHI Yanping. Advances on methods and easy separated support materials for enzymes immobilization［J］. TrAC Trends in Analytical Chemistry，2018，102：332-342. doi:10.1016/j.trac.2018.03.011
8	SHAKERIAN F， ZHAO Jing， LI Shaoping. Recent development in the application of immobilized oxidative enzymes for bioremediation of hazardous micropollutants：A review［J］. Chemosphere，2020，239：124716. doi:10.1016/j.chemosphere.2019.124716
9	MUREŞEANU M， PÂRVULESCU V，ENE R，et al. Cu（Ⅱ） complexes imobilized on functionalized mesoporous silica as catalysts for biomimetic oxidations［J］. Journal of Materials Science，2009，44（24）：6795-6804. doi:10.1007/s10853-009-3682-6
10	WANG Jiayi， YU Shuyu， FENG Fujuan，et al. Simultaneous purification and immobilization of laccase on magnetic zeolitic imidazolate frameworks：Recyclable biocatalysts with enhanced stability for dye decolorization［J］. Biochemical Engineering Journal，2019，150：107285. doi:10.1016/j.bej.2019.107285
11	AMERI A， TAGHIZADEH T， TALEBIAN-KIAKALAIEH A，et al. Bio-removal of phenol by the immobilized laccase on the fabricated parent and hierarchical NaY and ZSM-5 zeolites［J］. Journal of the Taiwan Institute of Chemical Engineers，2021，120：300-312. doi:10.1016/j.jtice.2021.03.016
12	CELIKBICAK O， BAYRAMOGLU G， YıLMAZ M，et al. Immobilization of laccase on hairy polymer grafted zeolite particles：Degradation of a model dye and product analysis with MALDI-ToF-MS［J］. Microporous and Mesoporous Materials，2014，199：57-65. doi:10.1016/j.micromeso.2014.08.003
13	MAHMOODI N M， SAFFAR-DASTGERDI M H， HAYATI B. Environmentally friendly novel covalently immobilized enzyme bionanocomposite：From synthesis to the destruction of pollutant［J］. Composites Part B：Engineering，2020，184：107666. doi:10.1016/j.compositesb.2019.107666
14	MAHMOODI N M， SAFFAR-DASTGERDI M H. Clean Laccase immobilized nanobiocatalysts（graphene oxide-zeolite nanocomposites）：From production to detailed biocatalytic degradation of organic pollutant［J］. Applied Catalysis B：Environmental，2020，268：118443. doi:10.1016/j.apcatb.2019.118443
15	ZHANG Huaxin， JIANG Zhengbing， XIA Qinghua，et al. Progress and perspective of enzyme immobilization on zeolite crystal materials［J］. Biochemical Engineering Journal，2021，172：108033. doi:10.1016/j.bej.2021.108033
16	ZHANG Huaxin， LI Han， WANG Kai，et al. Efficient protein delivery systems based on hierarchical zeolite microspheres constructed by MWW-nanosheets［J］. Microporous and Mesoporous Materials，2020，298：110098. doi:10.1016/j.micromeso.2020.110098
