Improving the treatment effect of coal chemical wastewater by A/O-MBBR technology

doi:10.19965/j.cnki.iwt.2021-1349

Abstract

Abstract:

Coal chemical wastewater has the characteristics of complex composition，high pollutant content，great harm，and high treatment difficulty. It has become an urgent demand for the development of China’s coal chemical industry to seek efficient，stable，and low-cost coal chemical wastewater treatment process. Taking the wastewater from the regulating tank of a coal chemical plant in Xinjiang as the treatment object，the study on improving the treatment efficiency of coal chemical wastewater was carried out by means of Anaerobic/Oxic process（A/O） and Moving-Bed Biofilm Reactor （MBBR） coupled water treatment technology. In the study，the treatment effects of two different MBBR fillers on the pollutants in the wastewater were mainly investigated. The pilot experiment results showed that the two different fillers had similar effects in COD removal rate. The filler Ⅱ showed better performance in nitrification and denitrification capacity. The TP removal effect of filler Ⅰ was better than that of filler Ⅱ. Moreover，the A/O-MBBR coupling process operated stably，and had certain anti COD impact load capacity，which made it had practical application potential.

Key words: coal chemistry, Anaerobic/Oxic process, Moving-Bed Biofilm Reactor, filler

摘要：

煤化工废水成分复杂、污染物含量高、危害大、处理难度高，寻求高效稳定、成本低廉的煤化工废水处理工艺已经成为我国煤化工产业发展的迫切需求。选取新疆某煤化工厂调节池废水为处理对象，通过厌氧好氧工艺（A/O）和移动床式生物膜反应器（MBBR）相耦合的水处理技术进行提升煤化工废水处理效能的研究，研究过程中重点考察了2种不同的MBBR填料对废水中污染物的处理效果。中试实验结果表明：2种不同的填料在COD去除率方面效果相当；采用填料Ⅱ的耦合工艺的硝化与反硝化能力更强，出水NH₃-N与TN均优于采用填料Ⅰ工艺的出水指标；在TP去除方面，采用填料Ⅰ对系统的优化效果优于采用填料Ⅱ的效果；A/O-MBBR耦合工艺整体运行稳定，有一定的抗COD冲击负荷能力，具有实际应用潜力。

关键词: 煤化工, 厌氧好氧工艺, 移动床式生物膜反应器, 填料

CLC Number:

X784

Fei HE, Dehan ZHU, Cheng LI, hui FANG. Improving the treatment effect of coal chemical wastewater by A/O-MBBR technology[J]. Industrial Water Treatment, 2022, 42(11): 162-168.

贺飞, 朱德汉, 李成, 方辉. A/O-MBBR技术提升煤化工废水处理效果的研究[J]. 工业水处理, 2022, 42(11): 162-168.

/ / Recommend / Download Citations

URL: https://gyscl.magtechjournal.com/EN/10.19965/j.cnki.iwt.2021-1349

https://gyscl.magtechjournal.com/EN/Y2022/V42/I11/162

Figures/Tables 7

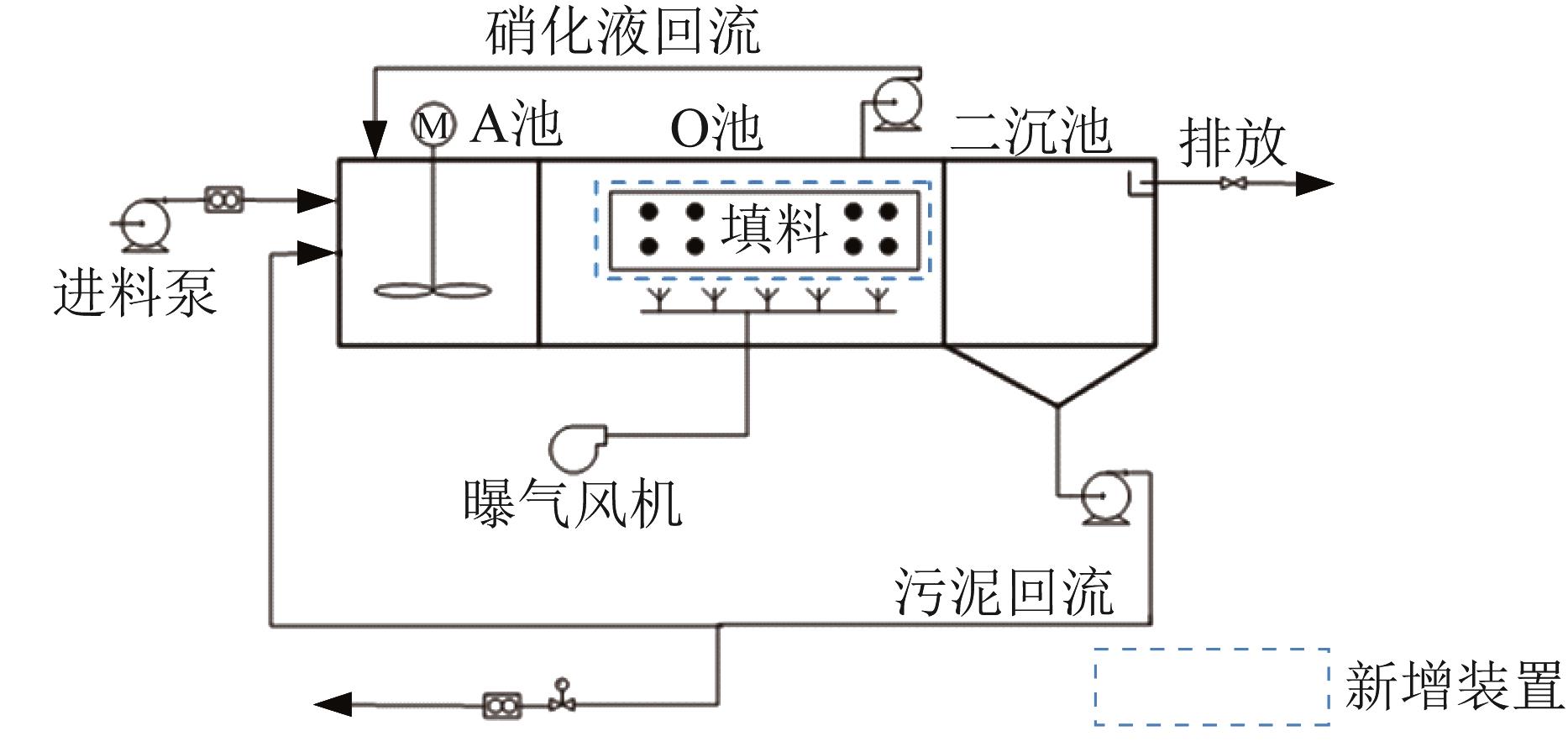

Fig. 1 Pilot system of A/O-MBBR process

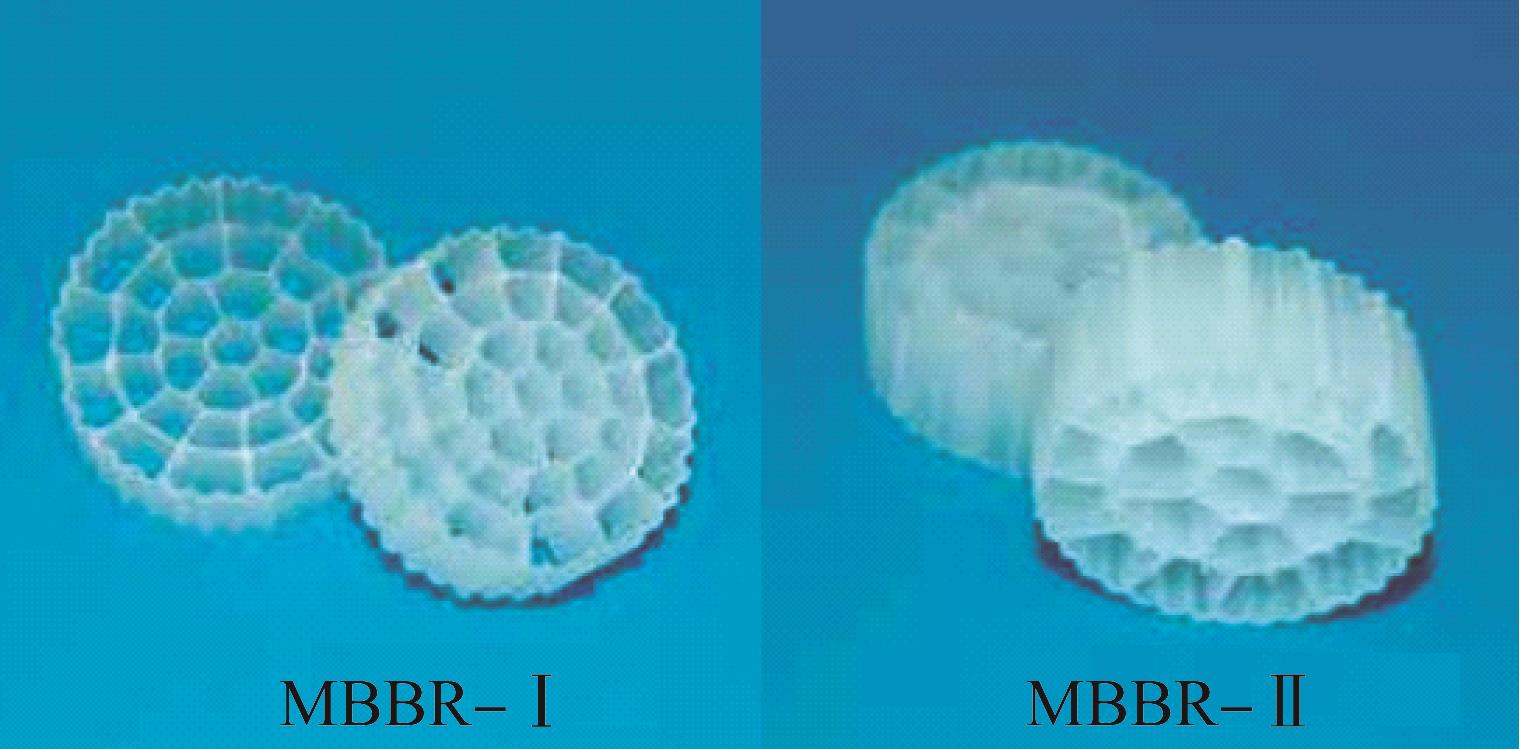

Fig. 2 Photos of two kinds of MBBR fillers

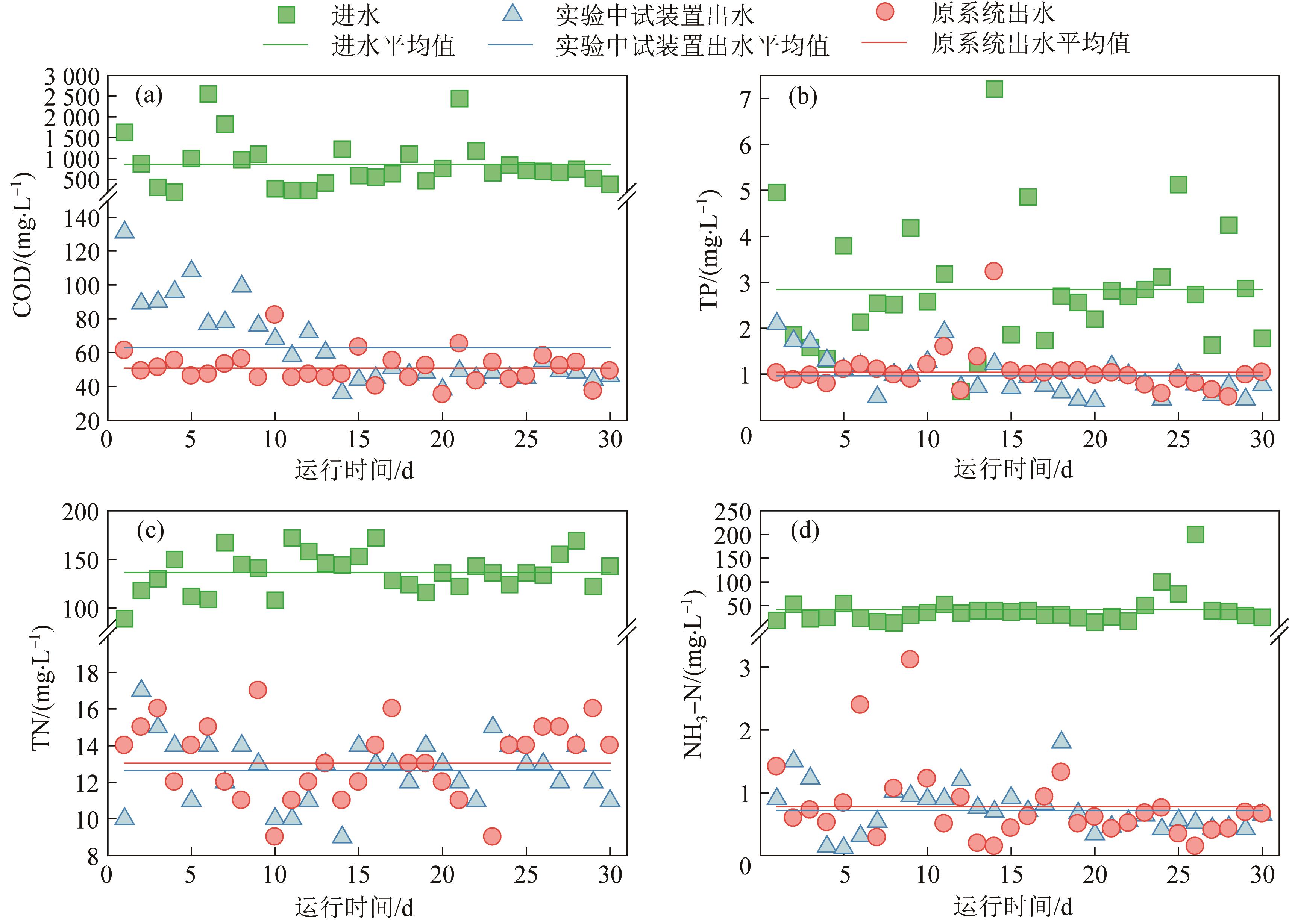

Fig. 3 Effect of A/O process without MBBR filler on wastewater treatment

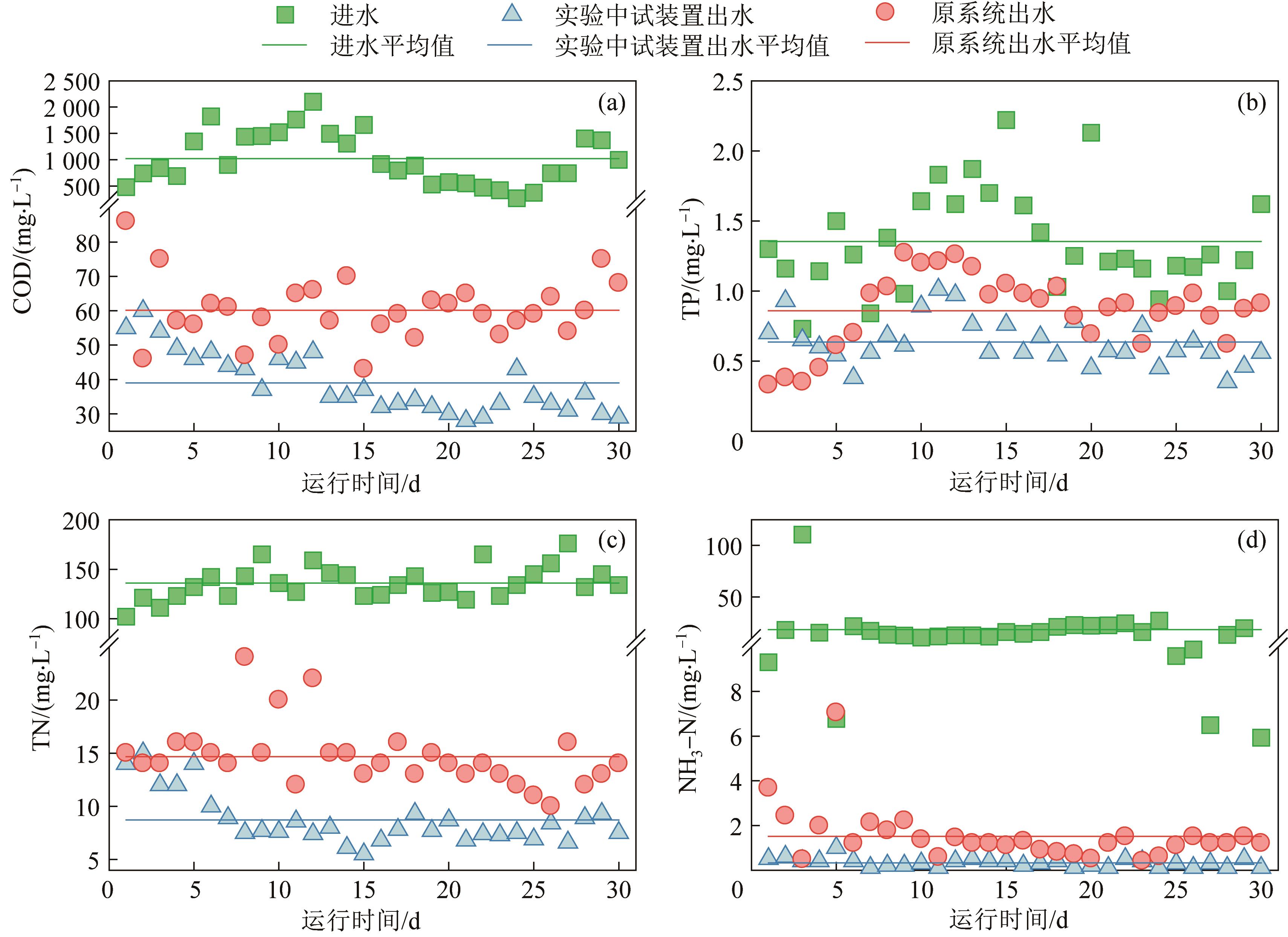

Fig. 4 Effect of A/O-MBBR coupling process with filler Ⅰ on wastewater treatment

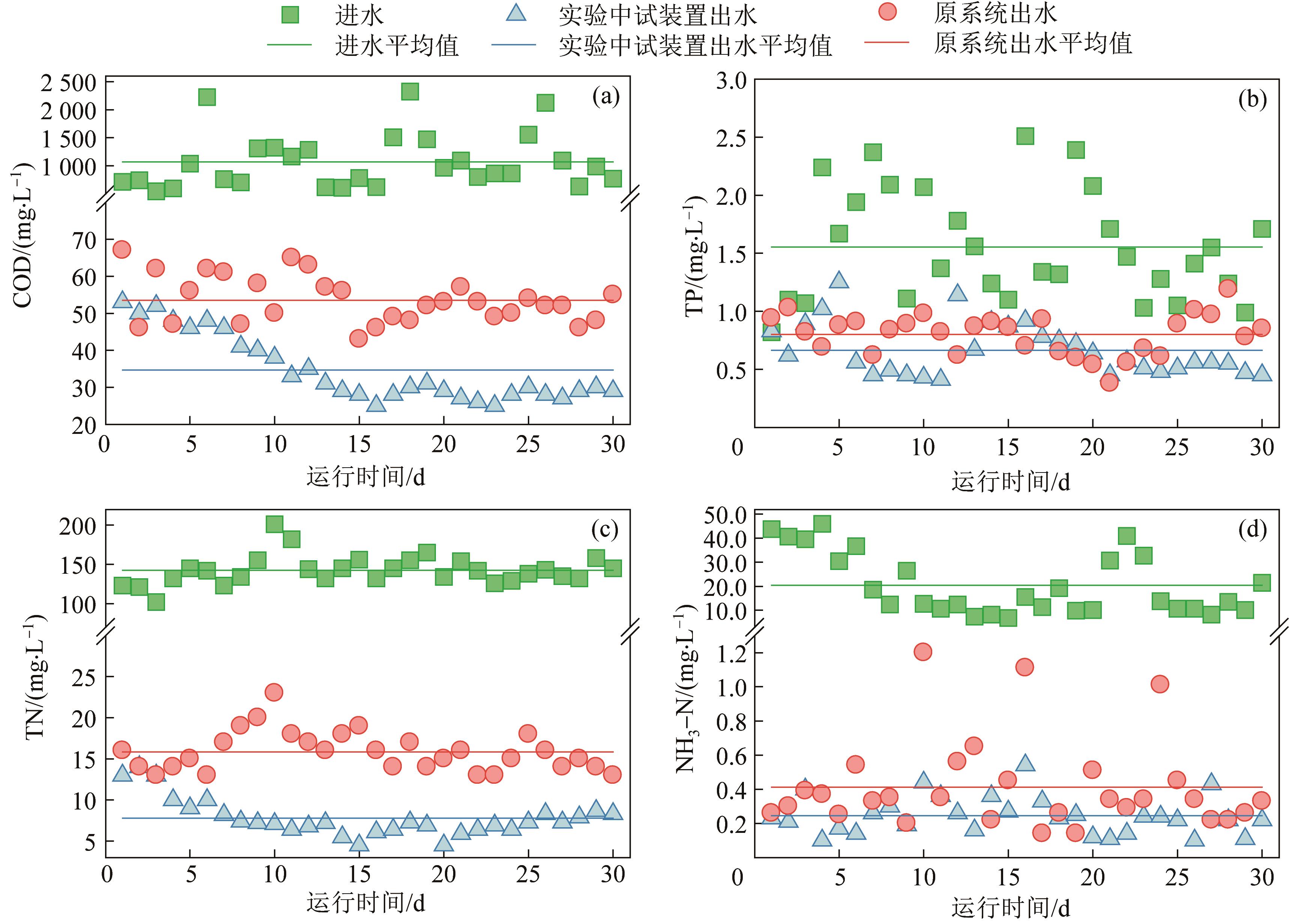

Fig. 5 Effect of A/O-MBBR coupling process with filler Ⅱ on wastewater treatment

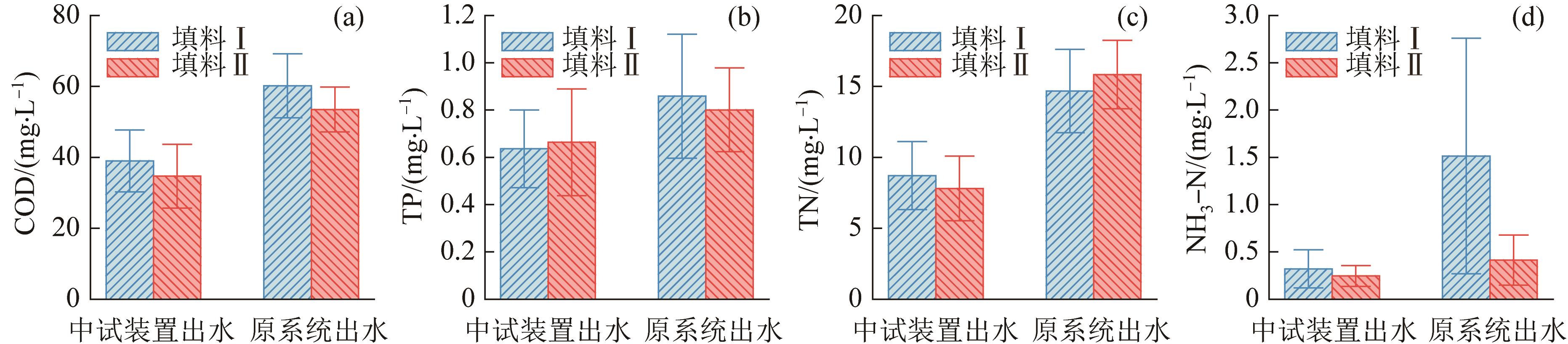

Fig. 6 Comparison of treatment effects of A/O-MBBR coupling process with different fillers

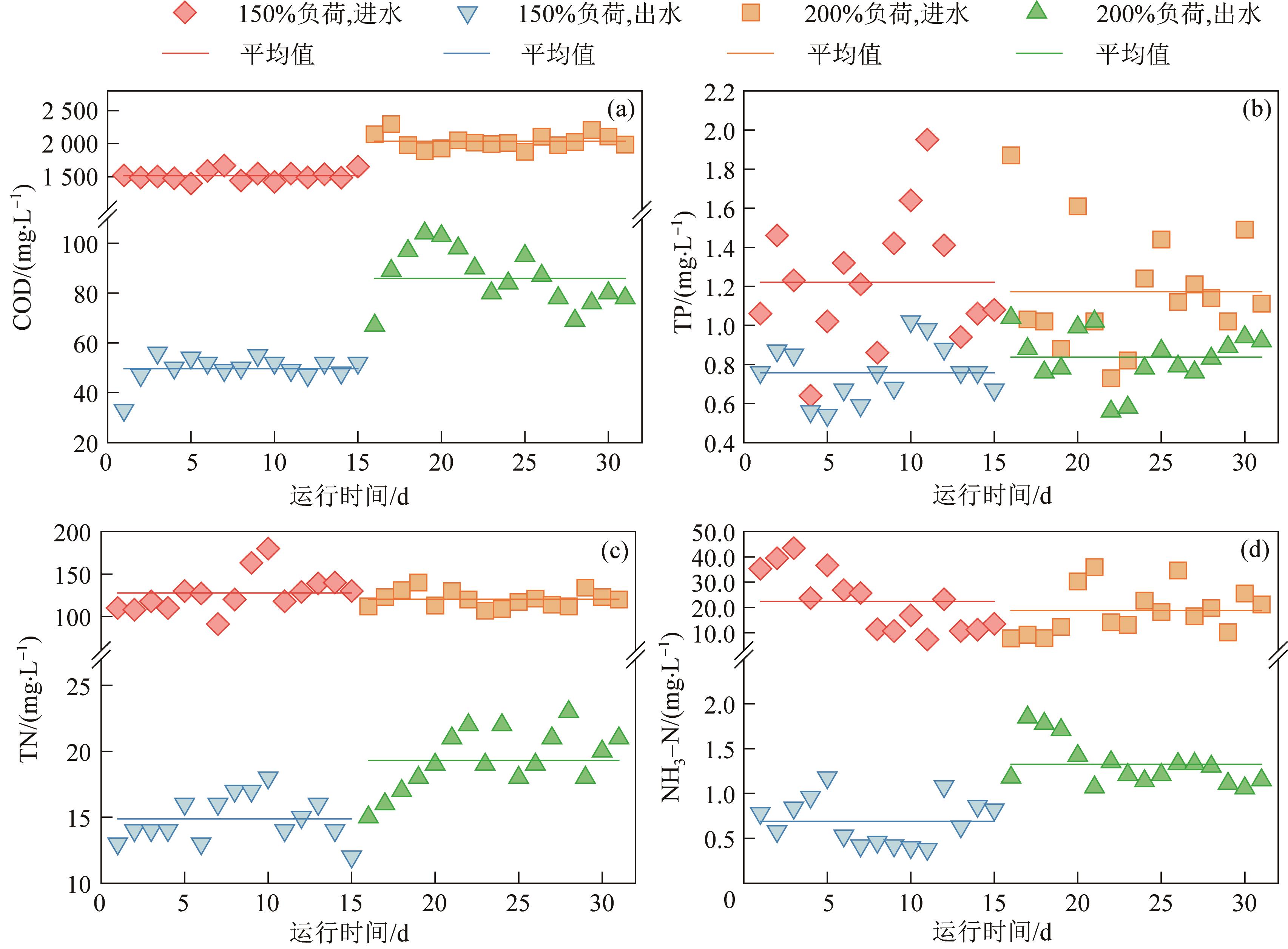

Fig. 7 Effect of COD impact load on A/O-MBBR process

References 16

1	赵玮. 煤化工技术发展现状及其新型技术研究［J］. 化工管理，2021（28）：94-95.
	ZHAO Wei. Development status of coal chemical technology and research on its new technology［J］. Chemical Enterprise Management，2021（28）：94-95.
2	冯锦华. 煤化工行业废水处理技术应用分析［J］. 化工设计通讯，2021，47（8）：3-4. doi:10.3969/j.issn.1003-6490.2021.08.002
	FENG Jinhua. Application analysis of wastewater treatment technology in coal chemical industry［J］. Chemical Engineering Design Communications，2021，47（8）：3-4. doi:10.3969/j.issn.1003-6490.2021.08.002
3	袁婧，常风民，鞠雪敏，等. 精细化工行业高盐、高浓度有机废水无害化处理现状及发展趋势［J］. 科技导报，2021，39（17）：24-31. doi:10.3981/j.issn.1000-7857.2021.17.003
	YUAN Jing， CHANG Fengmin， JU Xuemin，et al. Status quo of high-salt high-concentration organic wastewater treatment in fine chemical industry and its development trend［J］. Science & Technology Review，2021，39（17）：24-31. doi:10.3981/j.issn.1000-7857.2021.17.003
4	杨玉旺. 移动床生物膜反应器处理污水的研究应用进展［J］. 工业水处理，2004，24（2）：12-15. doi:10.11894/1005-829x.2004.24(2).12
	YANG Yuwang. Current study and application of MBBR to wastewater treatment［J］. Industrial Water Treatment，2004，24（2）：12-15. doi:10.11894/1005-829x.2004.24(2).12
5	王文浩，李文超，何岩，等. 城镇污水处理厂低温硝化强化研究进展［J］. 工业水处理，2016，36（6）：7-11. doi:10.11894/1005-829x.2016.36(6).002
	WANG Wenhao， LI Wenchao， HE Yan，et al. Research progress in the nitrification reinforcement at low temperature for urban sewage treatment plants［J］. Industrial Water Treatment，2016，36（6）：7-11. doi:10.11894/1005-829x.2016.36(6).002
6	龚文静，潘伟亮，曹云鹏，等. MBBR工艺的应用研究及发展前景［J］. 应用化工，2021，50（3）：780-783. doi:10.3969/j.issn.1671-3206.2021.03.045
	GONG Wenjing， PAN Weiliang， CAO Yunpeng，et al. Application research and development prospect of MBBR process［J］. Applied Chemical Industry，2021，50（3）：780-783. doi:10.3969/j.issn.1671-3206.2021.03.045
7	王庆，丁原红，任洪强，等. 厌氧MBBR-好氧MBR组合工艺对PU合成革废水的除氮试验研究［J］. 工业水处理，2012，32（10）：61-64. doi:10.3969/j.issn.1005-829X.2012.10.017
	WANG Qing， DING Yuanhong， REN Hongqiang，et al. Experimental research on the removal of nitrogen from PU synthetic leather wastewater by combined process anaerobic MBBR and aerobic MBR［J］. Industrial Water Treatment，2012，32（10）：61-64. doi:10.3969/j.issn.1005-829X.2012.10.017
8	李海涛. 基于微电极技术的生物膜载体MBBR脱氮性能分析［J］. 工业水处理，2021，41（6）：246-251. doi:10.11894/iwt.2020-1009
	LI Haitao. Analysis of nitrogen removal performance of MBBR with different biofilm carriers by microelectrode technique［J］. Industrial Water Treatment，2021，41（6）：246-251. doi:10.11894/iwt.2020-1009
9	SHITU A， ZHU Songming， QI Wanhe，et al. Performance of novel sponge biocarrier in MBBR treating recirculating aquaculture systems wastewater：Microbial community and kinetic study［J］. Journal of Environmental Management，2020，275：111264. doi:10.1016/j.jenvman.2020.111264
10	陈如勇，张晓霞，周家中，等. MSBR改为三级A/O-MBBR连续流工艺的应用效果［J］. 中国给水排水，2021，37（14）：108-114. doi:10.19853/j.zgjsps.1000-4602.2021.14.018
	CHEN Ruyong， ZHANG Xiaoxia， ZHOU Jiazhong，et al. Practical application effect of retrofitted MSBR into three-stage A/O-MBBR continuous flow process［J］. China Water & Wastewater，2021，37（14）：108-114. doi:10.19853/j.zgjsps.1000-4602.2021.14.018
11	ZHANG Miao， GAO Jing， FAN Yajun，et al. Combined effects of volume ratio and nitrate recycling ratio on nutrient removal，sludge characteristic and microbial evolution for DPR optimization［J］. Journal of Environmental Sciences，2021，104：69-83. doi:10.1016/j.jes.2020.12.003
12	BAKAR S N H ABU， HASAN H ABU， MOHAMMAD A W，et al. Performance of a laboratory-scale moving bed biofilm reactor（MBBR） and its microbial diversity in palm oil mill effluent（POME） treatment［J］. Process Safety and Environmental Protection，2020，142：325-335. doi:10.1016/j.psep.2020.05.004
13	王雪欣，毕学军，麻弛张，等. 两点进水三段A/O-MBBR生物脱氮中试研究［J］. 中国给水排水，2021，37（17）：62-68.
	WANG Xuexin， BI Xuejun， MA Chizhang，et al. Nitrogen removal of pilot-scale three stages A/O-MBBR with two-step-feed［J］. China Water & Wastewater，2021，37（17）：62-68.
14	赖竹林，周雪飞. 移动床生物膜反应器（MBBR）的研究现状及进展［J］. 水处理技术，2021，47（10）：7-11.
	LAI Zhulin， ZHOU Xuefei. Research status and progress of moving bed biofilm reactor（MBBR）［J］. Technology of Water Treatment，2021，47（10）：7-11.
15	闵振. MBBR悬浮填料加A/O工艺处理石化效果及微生物群落分析［D］. 喀什：喀什大学，2021.
	MIN Zhen. Petrochemical treatment effect and microbial community analysis of MBBR suspended packing A/O combined process［D］. Kashi：Kashi University，2021.
16	李亚峰，李旭光，单连斌，等. 不同填料对AA-MBBR系统处理效果及菌群多样性影响［J］. 工业水处理，2019，39（1）：73-77. doi:10.11894/1005-829x.2019.39(1).073
	LI Yafeng， LI Xuguang， SHAN Lianbin，et al. Influence of different fillers on the treatment effect and flora diversity of AA-MBBR systems［J］. Industrial Water Treatment，2019，39（1）：73-77. doi:10.11894/1005-829x.2019.39(1).073
