摘要：

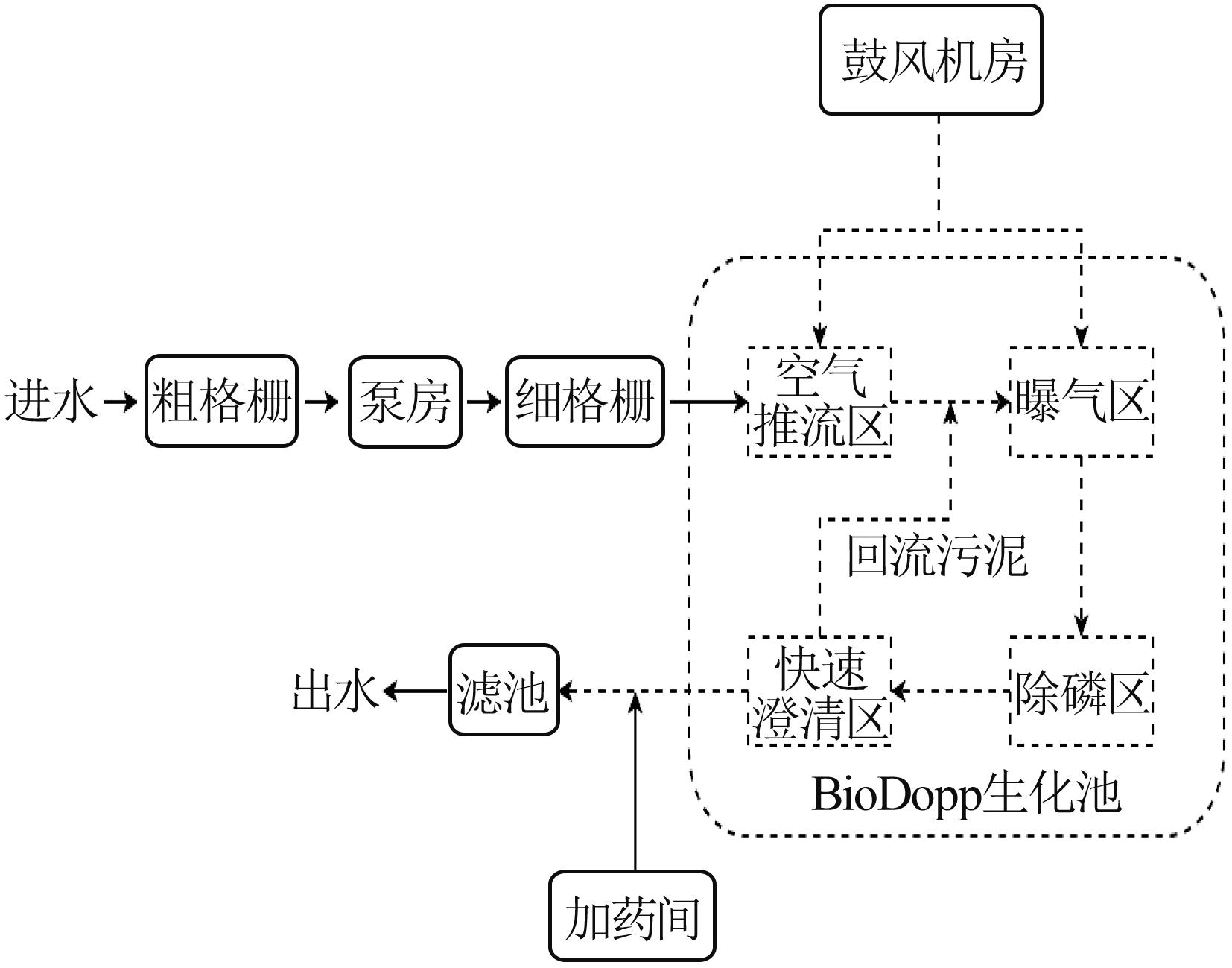

雄安新区某污水处理厂提标改造工程，要求出水水质由《城镇污水处理厂污染物排放标准》（GB 18918—2002）一级A标准提升至《地表水环境质量标准》（GB 3838—2002）中Ⅳ类水质标准，其中出水TN≤10 mg/L。该工程通过将污水厂原有的悬链式曝气+A²/O工艺改造为BioDopp工艺，最终实现污水厂出水COD、氨氮、TN、TP等各项水质指标达到当地规定的准Ⅳ类水质标准。该工程采用内部改造的方式，不仅节约用地、节省造价，且出水TN稳定<10 mg/L，可为同类型用地紧张污水厂提标改造工程提供方案借鉴。

关键词: BioDopp, 提标改造, 准Ⅳ类水体

Abstract:

The effluent quality standard is required to raise from class A water quality standard in the Discharge Standard of Pollutants for Municipal Wasterwater Treatment Plant（GB 18918—2002）to class Ⅳ standard in the Environment Quality Standards for Surface Water（GB 3838—2002）for a sewage treatment plant in Xiong’an New District，in which the effluent TN is required to be less than 10 mg/L. The project transformed the original catenary aeration A²/O process into a BioDopp process，and finally realized that the effluent COD，NH₄ ⁺-N，TN，TP and other water quality indexes reached the local standard of class Ⅳ water quality. This project adopted the method of internal transformation，which not only saved land and cost，but also the effluent TN was stable less than 10 mg/L. This project provided a reference for the upgrading project of the same type of intensive sewage plant.

Key words: BioDopp, upgrading and reconstruction, quasi-Ⅳ water body

中图分类号:

• X703
